Published: October 26, 2023

For industries requiring consistent, high-volume production of fine limestone powder, the integration of a Raymond Grinding Mill with an advanced cyclone separator system represents a pinnacle of efficiency and reliability. This configuration, a cornerstone of LIMING HEAVY INDUSTRY's grinding solutions, delivers precise particle size control, enhanced collection rates, and a cleaner operational environment. By combining the proven, pendulum-roller grinding mechanism of the Raymond mill with the centrifugal separation power of a cyclone, the system ensures optimal product yield while minimizing energy consumption and environmental footprint. It is engineered for continuous, stable operation in demanding applications such as power plant desulfurization, heavy calcium carbonate processing, and non-metallic mineral powder production.

At the heart of this system lies the robust Raymond Mill (also known as the European Type Grinding Mill/MTW series), a technological evolution from traditional designs. It is specifically engineered for processing non-flammable, non-explosive materials like limestone with a Mohs hardness under 7 and humidity below 6%. The mill's core grinding assembly features a curved shovel that feeds material between the grinding rollers and the grinding ring. The rollers, under centrifugal force, exert immense pressure on the material bed, pulverizing it into fine particles. A critical component of this process is the integral air blower, which circulates air through the grinding chamber, carrying the fine powder upward for classification.

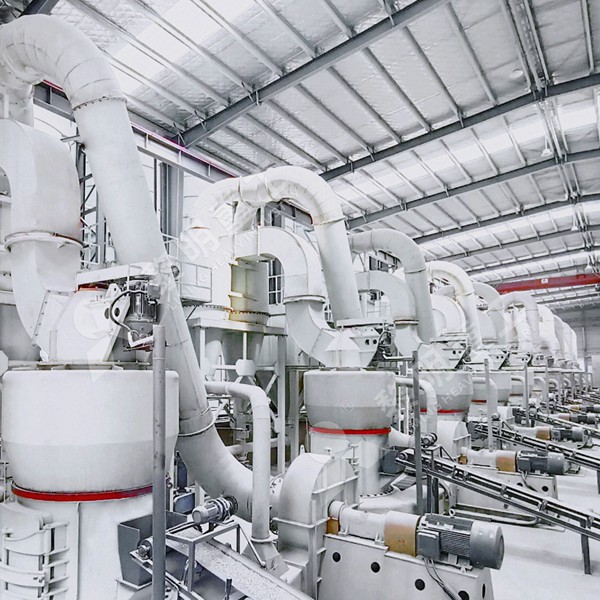

This is where the cyclone separator becomes indispensable. The air-powder mixture from the mill enters the cyclone separator tangentially at high velocity. A powerful centrifugal force is generated, causing the heavier limestone particles to spiral along the walls of the separator and descend into the collection hopper below. The cleaned air, now with significantly reduced dust content, is typically recirculated back to the mill's blower, creating a highly efficient closed-loop system. This separation stage is crucial for achieving the target fineness range of 44μm to 613μm (325 mesh to 30 mesh) and ensures a high-purity final product. For even stricter environmental standards, the system is further equipped with a high-efficiency pulse jet bag dust collector, which captures any residual ultrafines before the air is vented, guaranteeing emissions compliance.

LIMING HEAVY INDUSTRY's commitment to innovation is embedded in this design. The mill incorporates features like a geared internal planetary drive for smoother transmission, wear-resistant alloy rollers and rings for extended service life in abrasive limestone processing, and an automated, centralized electrical control system for easy operation and monitoring. The entire grinding line—from the initial jaw crusher that reduces raw limestone lumps, the vibrating feeder, the grinding mill, to the cyclone separator and dust collector—is designed as a cohesive unit. This holistic approach, backed by over three decades of manufacturing expertise since the company's founding in 1987, ensures seamless integration, stable performance, and high productivity for our clients.

The applications for this limestone grinding system are vast. In power plants, it is the technology of choice for producing limestone powder used in flue gas desulfurization (FGD). In the construction materials industry, it provides the fine ground calcium carbonate for paints, plastics, and rubber. Its reliability and adjustability make it equally suitable for producing fillers and additives in various chemical and industrial processes. The cyclone separator's role in maximizing product recovery directly translates to lower waste and higher operational profitability.

Operational efficiency is further enhanced by the system's low energy profile. The closed-circuit air flow and efficient separation reduce the load on the main blower. Furthermore, the design of the grinding chamber and classifier allows for a high throughput rate—with capacities scaling to meet production demands—while maintaining consistent fineness. For operators, this means a reliable, low-maintenance solution that prioritizes precision, environmental stewardship, and long-term value, embodying LIMING HEAVY INDUSTRY's philosophy of scientific research, precision manufacturing, and technological progress.

Frequently Asked Questions (FAQ)

1. What is the primary advantage of using a cyclone separator with a Raymond mill for limestone?
   The cyclone separator drastically improves collection efficiency of the finished powder, allows for precise particle size classification, and enables a closed-loop air system that enhances energy efficiency and contains dust within the production circuit.
2. What moisture content can the Raymond mill with cyclone system handle for limestone?
   The system is optimally designed for materials with humidity less than 6%. For limestone with higher moisture, integrated drying features or a pre-drying stage may be recommended.
3. How is the fineness of the final limestone powder controlled?
   Fineness is primarily controlled by adjusting the speed of the classifier within the system. Slower speeds allow coarser particles to pass, while higher speeds permit only the finest particles to be collected by the cyclone.
4. Is the system environmentally friendly?
   Yes. The combination of the closed-loop air system, high-efficiency cyclone separator, and an optional pulse jet baghouse dust collector ensures minimal dust emissions, fully complying with modern environmental protection standards.
5. What is the typical input size of limestone required for this grinding system?
   The Raymond mill system typically requires feed material that has been pre-crushed to a size of 15-30mm, which is usually achieved with a primary jaw crusher included in the complete grinding line configuration.
