The efficient processing of kaolin for drilling mud applications demands specialized grinding and milling equipment capable of producing fine, consistent powders with precise particle size distribution. As a leader in industrial crushing and grinding machinery since 1987, Liming Heavy Industry Co., Ltd. offers a robust portfolio of advanced milling solutions engineered to transform raw kaolin into high-performance additives for drilling fluid systems. Our equipment, ranging from high-capacity vertical roller mills to ultra-fine micro powder mills, is designed to meet the rigorous demands of the oilfield services sector, ensuring optimal rheological properties, filtration control, and overall mud performance. This article explores the critical role of our processing technologies in enhancing kaolin's value for drilling operations.

Kaolin, a naturally occurring hydrated aluminum silicate clay, is a vital component in water-based drilling fluids. Its primary functions include increasing viscosity, reducing fluid loss, and stabilizing the borehole wall. However, the effectiveness of kaolin in these roles is heavily dependent on its particle size, shape, and purity after processing. Raw kaolin must be dried, ground, and classified to achieve the specific fineness and reactivity required for modern drilling formulations. This is where precision-engineered processing equipment from Liming Heavy Industry becomes indispensable.

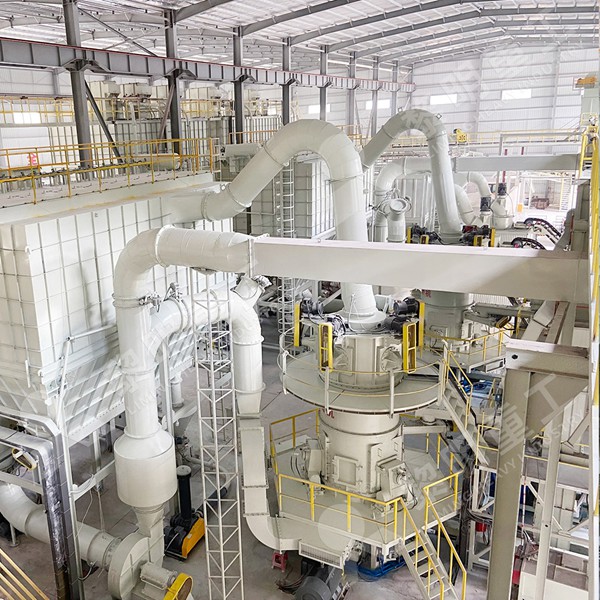

For large-scale production of drilling mud kaolin, our LM Vertical Roller Mill stands out as a premier choice. This integrated system combines drying, grinding, powder selection, and conveying into a single, efficient unit. With a capacity ranging from 10 to 400 tons per hour, it can handle significant volumes of raw material. The vertical roller mill's grinding mechanism applies pressure and shear force to the kaolin bed, producing a uniform product with controlled moisture content—a critical factor for drilling mud stability. Its energy-efficient design and ability to process materials with input sizes up to 55mm make it ideal for primary reduction and fine grinding in a continuous operation.

When the application requires a fine to medium-fine powder, our classic Raymond Mill (also known as a pendulum roller mill) offers reliable performance. Proven in mineral processing for decades, it is suitable for grinding non-explosive materials like kaolin to a fineness between 44 and 613 microns. Its simplicity, durability, and low maintenance make it a cost-effective solution for many processing plants. The Raymond Mill excels in producing the consistent particle size distribution necessary for predictable drilling mud behavior.

Building upon this legacy, the MTW European Type Grinding Mill represents a technological evolution. As an upgrade to traditional Raymond and pendulum mills, it incorporates patented technology for greater stability, higher productivity, and enhanced environmental performance. Its trapezium grinding chamber and advanced internal classifier ensure superior powder selection, yielding kaolin products with tight particle size control. This mill is particularly committed to large-scale, eco-friendly powder production, aligning with the industry's move towards sustainable operations. The system operates as a closed circuit, incorporating a jaw crusher for preliminary size reduction, a vibrating feeder, and an efficient pulse dust collector, ensuring a clean and contained processing environment.

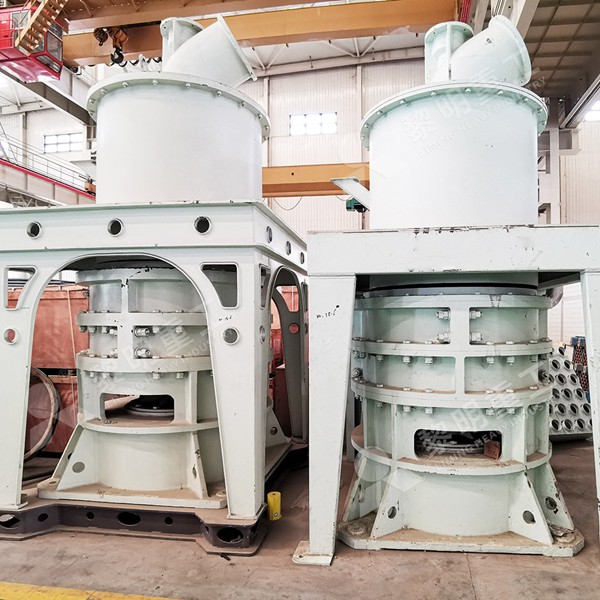

For the highest purity and ultra-fine kaolin powders, which are increasingly sought after for advanced drilling fluid formulations, the MW Micro Powder Mill is the optimal solution. This mill absorbs advanced grinding technology and is exceptionally adept at superfine processing, achieving fineness levels up to d97 ≤ 5μm (approximately 2500 mesh). Such extreme fineness can significantly enhance the sealing and fluid-loss prevention properties of drilling mud. The MW Mill's grinding principle involves multiple rollers rotating against a raceway, creating intense shear and compression forces that reduce kaolin to micron and sub-micron levels without contamination.

Finally, the traditional yet highly versatile Ball Mill remains a cornerstone in many processing circuits. It is a key equipment for milling after primary crushing and can grind kaolin alongside other additives if needed. Operating on the principle of impact and attrition as steel balls tumble inside a rotating chamber, ball mills are known for their robustness and ability to produce a wide range of fineness. They are commonly used in beneficiation and can be integral to processing kaolin that requires simultaneous grinding and mixing.

Liming Heavy Industry's commitment to innovation is rooted in our modern scientific management system and a dedicated R&D strategy focused on product competitiveness. With headquarters and expansive workshops in Zhengzhou's HI-TECH Industry Development Zone, we leverage a mature scientific research team to continuously develop and refine our machinery. We aim at the technological frontier, ensuring our kaolin processing equipment not only meets but anticipates the needs of the global drilling industry. By choosing Liming equipment, processors invest in reliability, precision, and the backing of over three decades of manufacturing leadership in crushing and grinding technology.

Frequently Asked Questions (FAQs)

1. What is the key advantage of using the LM Vertical Roller Mill for drilling mud kaolin?
   The LM Vertical Roller Mill integrates drying, grinding, and classification into one system, offering high capacity (up to 400 T/H) and energy efficiency, which is crucial for processing large volumes of kaolin while controlling moisture content for optimal mud performance.
2. How fine can the MW Micro Powder Mill grind kaolin, and why is this important?
   The MW Mill can achieve a fineness up to d97 ≤ 5μm (approx. 2500 mesh). Ultra-fine kaolin improves the sealing properties and fluid loss control of drilling muds, leading to better wellbore stability and reduced non-productive time.
3. Can your equipment handle the entire kaolin processing line from raw material to finished powder?
   Yes, we provide complete system solutions. For example, our MTW European Type Grinding Mill system includes a jaw crusher, vibrating feeder, mill, separator, and dust collector, forming a closed-circuit, automated production line for turnkey operation.
4. Which mill is most suitable for a processing plant with limited space?
   Vertical roller mills like the LM series have a smaller footprint compared to traditional horizontal ball mills, as they integrate multiple functions vertically. Their compact design is advantageous for space-constrained installations.
5. How does Liming Heavy Industry ensure the environmental compliance of its grinding systems?
   Our modern mills, such as the MTW and MW series, are equipped with high-efficiency pulse jet dust collectors that capture airborne particles, ensuring emissions meet stringent environmental standards. The closed-system design of many of our mills also minimizes dust and noise pollution.
