Published on: October 26, 2023

For operators in the non-metallic mineral processing sector, particularly those focused on limestone, achieving consistent, high-volume production of fine powders within a tight particle size range is a persistent challenge. The 5R4119 Limestone Raymond Mill Complete Set from LIMING HEAVY INDUSTRY represents a mature, robust, and highly efficient turnkey solution engineered specifically to meet this demand. This integrated system, built upon decades of grinding technology refinement, combines the proven reliability of the Raymond mill principle with modern system integration, offering a streamlined workflow from raw material intake to finished powder collection. It is designed for operations requiring dependable, continuous grinding of non-flammable, non-explosive materials like limestone to fineness levels between 44μm and 613μm, making it ideal for applications in construction materials, industrial fillers, and power plant desulfurization preparation.

At the heart of the complete set is the 5R4119 Raymond Mill itself, a workhorse of the grinding industry. Its design philosophy prioritizes operational stability and ease of maintenance. The mill's namesake—the five grinding rollers—work in conjunction with a large-diameter grinding ring to apply compressive and shear forces to the material. This mechanical milling action is particularly well-suited for medium-hard materials like limestone, ensuring a uniform particle size distribution. The system's capacity, ranging up to several tons per hour, is achieved through this robust mechanical design rather than excessive speed, contributing to lower wear rates and longer component life. The integrated centrifugal classifier allows for real-time adjustment of the product fineness without the need to stop the mill, providing operators with crucial flexibility to meet varying customer specifications.

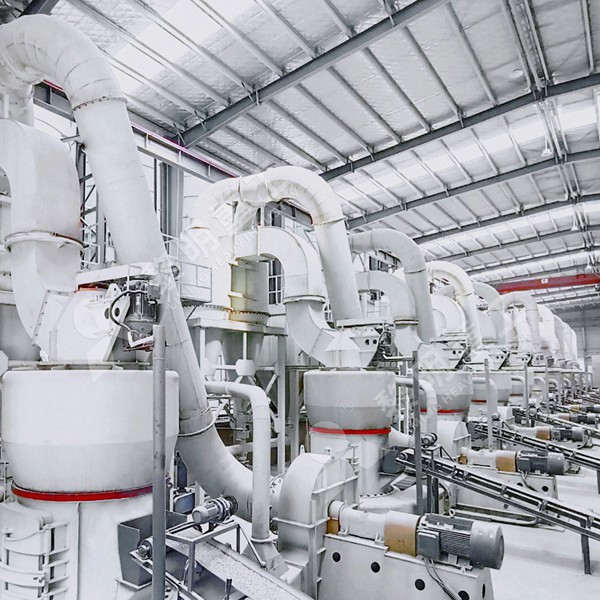

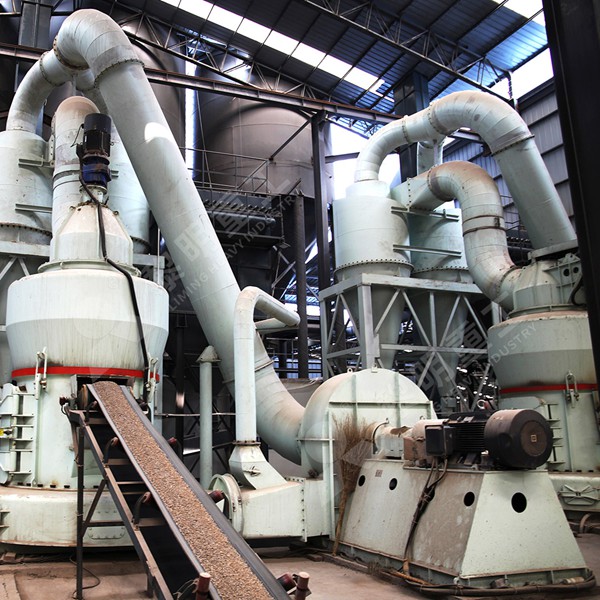

The concept of a "complete set" is what truly elevates this offering from a standalone machine to a production line. LIMING HEAVY INDUSTRY delivers a fully coordinated system where each component is selected and engineered to work in harmony. This typically includes a jaw crusher for primary size reduction of limestone feedstock, a variable-frequency vibrating feeder for precise and even material delivery to the mill, a high-efficiency centrifugal classifier (separator), a high-pressure air blower to generate the necessary airflow, and a pulse-jet baghouse dust collector. The dust collector is not an afterthought; it is a critical component that ensures a clean working environment, recovers valuable product, and allows the system to operate as a negative-pressure, closed-loop circuit. This closed-loop design minimizes dust emissions, aligning with modern environmental standards and sustainable operational practices.

Operational intelligence is embedded into the system through a centralized electric control cabinet. This cabinet houses the motor controls, protection circuits, and often a simple PLC-based logic system that sequences the startup and shutdown of components to prevent material blockages and equipment stress. For instance, the air blower will initiate before the mill starts, establishing the necessary airflow, and will be the last to shut down, ensuring the grinding chamber is cleared of residual powder. This level of automation reduces the potential for operator error and enhances the overall safety and reliability of the grinding line. The system's design, honed over 30 years of LIMING's experience in manufacturing crushing and grinding equipment, emphasizes accessibility for routine inspections and maintenance of wear parts like grinding rollers and liners.

The applications for the 5R4119 Limestone Raymond Mill Complete Set are extensive. Its primary role is in processing limestone into powders of various fineness grades. These powders are fundamental in the production of paints, plastics, rubber, and as a filler in paper. A significant application is in preparing limestone powder for flue gas desulfurization (FGD) in coal-fired power plants, where the reactivity and fineness of the powder are critical for efficient sulfur removal. The mill's suitability for materials under 7 Mohs hardness and 6% humidity makes it versatile for other similar non-metallic minerals as well. The complete set's strength lies in its ability to provide a continuous, stable supply of specification-grade powder, which is the lifeblood of downstream industrial processes.

Investing in a complete grinding system from a single manufacturer like LIMING HEAVY INDUSTRY carries distinct advantages. It ensures compatibility between all subsystems, guarantees a single point of accountability for performance and after-sales support, and simplifies the procurement and installation process. The company's philosophy of "scientific research tackling key problems" and its focus on technological improvement mean that even established designs like the Raymond mill benefit from ongoing refinements in materials, sealing technology, and system efficiency. For any enterprise looking to establish or upgrade its limestone powder production capability, the 5R4119 Limestone Raymond Mill Complete Set stands as a testament to proven engineering, integrated system design, and a commitment to delivering a reliable core for industrial productivity.

Frequently Asked Questions (FAQ)

1. What is the primary advantage of choosing the complete set over just the Raymond mill unit?
   The complete set ensures optimal compatibility and synchronized operation between all components (crusher, feeder, mill, classifier, blower, dust collector). This integration maximizes system efficiency, ensures stable product quality, and provides a single source for technical support and maintenance.
2. How is the fineness of the final limestone powder controlled?
   Fineness is primarily controlled by adjusting the speed of the integrated centrifugal classifier (separator). Increasing the classifier speed allows only finer particles to pass, resulting in a finer product, while decreasing it yields a coarser powder. This adjustment can be made during operation without shutting down the mill.
3. Can this system process materials other than limestone?
   Yes. The 5R4119 Raymond Mill is suitable for grinding various non-flammable, non-explosive materials with a Mohs hardness below 7 and moisture content under 6%, such as calcite, potash feldspar, talc, barite, and gypsum.
4. What are the key maintenance points for this grinding system?
   Regular maintenance focuses on wear parts: inspecting and replacing grinding rollers and the grinding ring, checking the lubrication system, cleaning or replacing filter bags in the dust collector, and ensuring all electrical connections and motor drives are in good condition.
5. How does the system address environmental dust control?
   The system is designed as a closed-loop, negative-pressure circuit. The pulse-jet baghouse dust collector captures over 99.9% of airborne particles, ensuring clean exhaust air that meets environmental standards and recovering product that would otherwise be lost.
