On-Site Excellence: Achieving Precision and Efficiency in 200-Mesh Limestone Grinding
Introduction
In the world of industrial mineral processing, the ability to consistently produce powder with a specific, uniform fineness is a critical determinant of product quality and operational profitability. This on-site report details the successful implementation of a advanced grinding mill system at a major building materials plant, where the primary goal is the reliable production of high-quality 200-mesh limestone powder. This case study serves as a testament to how modern milling technology, when correctly applied, directly translates into enhanced performance, stringent quality control, and significant economic benefits.
Site Overview and Operational Analysis

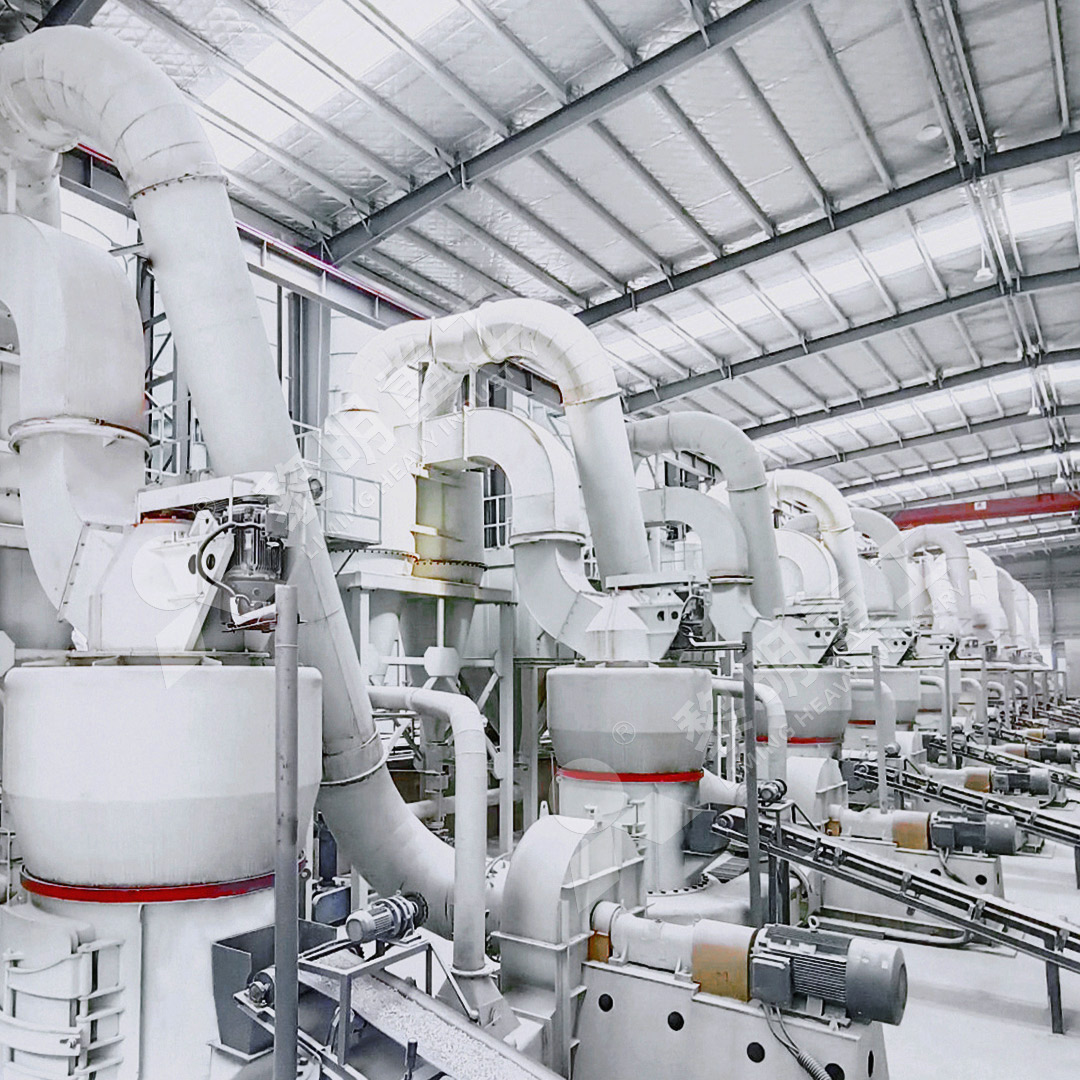

Upon arriving at the customer's facility, the first impression was of a highly organized and automated operation. The heart of the process is a high-performance Raymond Mill (specifically an HC1700 model), which was seamlessly integrated into the production line. The raw material, crushed limestone with a feed size consistently below 25mm, was being conveyed steadily into the grinding chamber.
The most critical aspect of this setup is the precision classifying system. For achieving a strict 200-mesh (75µm) product, the internal turbo classifier's speed is meticulously calibrated. The site manager explained that their final product is used in high-grade dry-mix mortar and as a desulfurizing agent, where inconsistent particle size can lead to compromised binding properties or inefficient chemical reactions. The Raymond mill's control system continuously monitors the classifier load and amperage, allowing for real-time adjustments to maintain the target fineness with a remarkable pass-rate of over 98%.
Operational efficiency was another standout feature. The plant utilizes a centralized PLC control system that provides real-time data on every critical parameter: main motor current, grinding roller pressure, fan airflow, and temperature at various points. This data-driven approach enables preemptive adjustments, preventing issues like overloading or a drop in fineness. Furthermore, the entire grinding circuit operates under negative pressure, with a high-efficiency pulse-jet baghouse dust collector ensuring that the plant environment is clean and complies with all environmental regulations, with no visible dust emissions.
Performance Metrics and Tangible Results
The data provided by the plant management clearly quantified the success of the installation. The grinding system consistently delivers a production output of 7-8 tons per hour for 200-mesh limestone powder. This represents a significant increase from their previous equipment, alongside a documented 15-20% reduction in energy consumption per ton of product. This efficiency gain is attributed to the mill's optimized grinding curve and the high-efficiency classifier, which minimizes the "over-grinding" of particles—a common source of energy waste.
The longevity of the grinding components was also a key point of satisfaction. The grinding rollers and rings, forged from a proprietary wear-resistant alloy material, had logged over 1,800 hours of operation and were projected to exceed 2,200 hours before requiring replacement. This exceptional wear life directly reduces maintenance downtime and the operational cost per ton, contributing substantially to the return on investment. This site demonstrates that a modern Raymond Mill is not merely a piece of grinding machinery but a comprehensive, high-precision system engineered for profitability and reliability in the competitive field of fine powder processing.
FAQ
1. What is the specific industrial significance of 200-mesh fineness for limestone?
200-mesh (75 microns) is a critical specification because it offers an optimal surface area-to-volume ratio for many applications. In construction, it provides excellent packing density and reactivity in products like mortar and asphalt. In flue gas desulfurization (FGD), this fineness maximizes the surface area for the chemical reaction that captures sulfur dioxide, ensuring high efficiency.
2. How does the classifier system ensure such consistent 200-mesh output?
The turbo classifier acts as a precision particle sorter. It consists of a rotating impeller that generates a centrifugal force. Finer particles (below 200-mesh) are carried through the impeller by the airflow to the collection system, while coarser particles are thrown back onto the grinding ring for further milling. By precisely controlling the rotational speed of this classifier, the cut point for particle size is accurately and consistently maintained.
3. What are the primary factors that influence the mill's hourly output capacity?
Key factors include:
Raw Material Hardness & Grindability: Softer limestone is processed faster.
Initial Feed Size: Smaller input material (e.g., 20mm vs. 30mm) requires less grinding energy, boosting capacity.
Moisture Content: High moisture can lead to clogging and reduced efficiency; ideally, moisture should be below 6%.
Wear Condition of Grinding Parts: As rollers and rings wear, throughput and fineness can gradually decline until they are replaced.
4. How is the negative pressure system maintained and why is it crucial?
Negative pressure is maintained by the system's main fan, which is strategically placed to draw air through the entire circuit. This is crucial for two reasons: Operational Efficiency: It ensures a smooth flow of material and air, carrying the ground powder to the classifier. Environmental Compliance: It prevents dust from escaping at any potential leakage point (e.g., feed inlet, inspection doors), as air is always being drawn into the mill, containing the dust within the system until it is captured by the baghouse filter.
