This article is a complete engineering guide to a dust free mineral grinding plant, based on Liming Heavy Industry project experience and product data. The plant uses a closed-loop grinding system to process materials from 55 mm lumps to ultra-fine powder. Key project information: mill capacities from 0.65 T/H to 400 T/H; feed sizes from ≤25 mm to 55 mm; output fineness from 613 μm to d97 ≤5 μm; and standard integration of jaw crusher, vibrating feeder, hopper, mill, separator, air blower, pulse dust collector, powder collector, pipes, electric cabinet, and motors. Negative-pressure airflow and pulse-jet dust collection are the two design pillars that keep the plant dust free while maintaining stable output.
Liming Heavy Industry, founded in 1987, is a modern manufacturer of large and medium crushing and grinding equipment. With headquarters in Zhengzhou Hi-Tech Industry Development Zone covering 80,000 m² and an additional workshop in Shangjie covering 67,000 m², the company has developed a scientific management system and mature research team. This engineering background supports the design of dust free mineral grinding plants as integrated systems, not just separate machines.
What Is a Dust Free Mineral Grinding Plant?
A dust free mineral grinding plant keeps material, airflow, and fine powder inside sealed equipment and pipes. Dust is captured at generation points such as mill inlet, classifier discharge, and bagging outlet. A pulse dust collector cleans the air before it is returned to the system. This closed circuit reduces material loss and creates a safer working environment.
In practice, dust free means dust cannot escape under normal operation. This requires proper sealing, stable negative pressure, adequate filter area, and regular maintenance of filter bags and rotary valves.

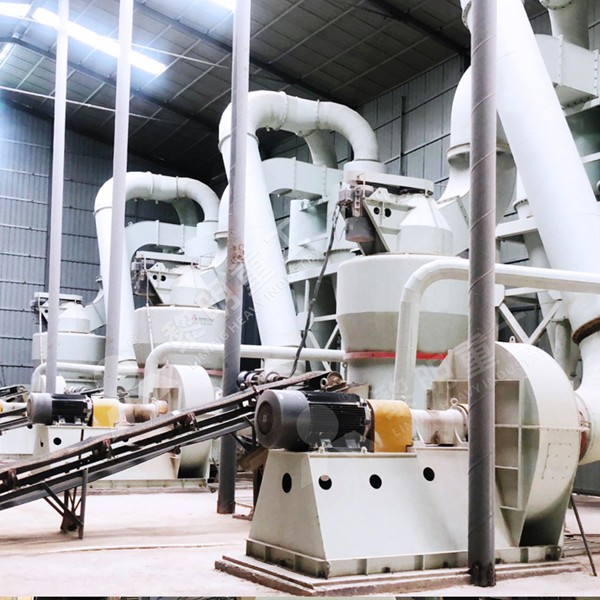

Core Equipment in the Grinding System
All Liming dust free plants share the same process skeleton.
- Jaw crusher: reduces large lumps to the mill feed size.
- Vibrating feeder: controls material flow, usually through a variable-frequency drive.
- Grinding mill: reduces the mineral particle size by rollers, rings, balls, or grinding media.
- Separator and classifier: separates fine powder from coarse particles.
- Air blower: maintains airflow and conveys powder.
- Pulse dust collector: collects fine dust and protects the environment.
- Powder collector and rotary valves: discharge finished products while keeping the system sealed.
- Pipes, electric cabinet, and motors: connect the units and automate the operation.
Mill Options for Dust Free Plants
LM Vertical Roller Mill - This mill is suitable for large-scale projects in cement, electricity, metallurgy, chemical, and non-metallic mineral industries. It is especially strong for non-metallic minerals, coal, and slag. The LM vertical mill integrates drying, grinding, powder selection, and conveying in one machine, with an automatic electric control system. Capacity is 10-400 T/H and input size is 30-55 mm. Because the airflow is enclosed, the vertical mill is naturally compatible with a pulse dust collector.

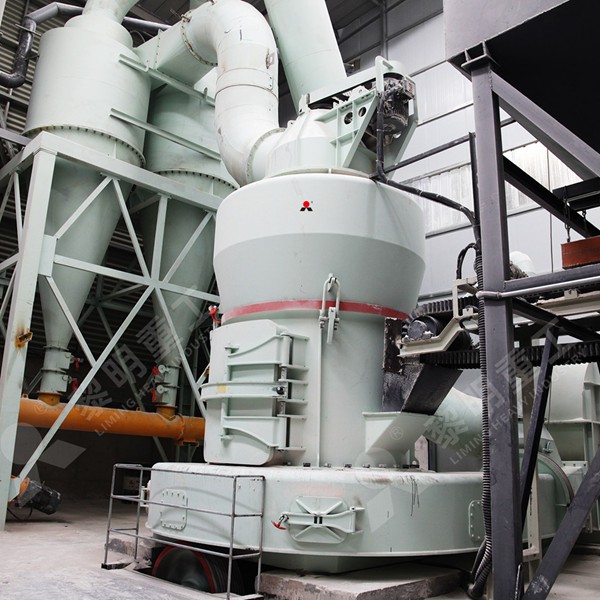

MTW European Type Trapezium Mill - This is the upgrade of the traditional Raymond mill and pendulum mill. It uses patented technology and is committed to large-scale non-metallic mineral powder making. Common applications include limestone desulfurization in power plants, heavy calcium carbonate processing, solid fuel grinding, building materials, and chemicals. The capacity is 3-55 TPH and input size is 30-50 mm. In the MTW system, the airflow passing through the separator returns to the blower, forming a closed loop that makes dust control straightforward.
Raymond Mill - For smaller plants and for materials with Mohs hardness below 7 and humidity below 6%, the Raymond mill remains a simple and dependable choice. It is widely used for calcium carbonate, gypsum, power plant desulfurization, non-metallic ore pulverizing, and pulverized coal preparation. Output fineness can be set between 613 μm and 44 μm. Capacity is 1.2-4.5 T/H and input size is 15-25 mm.
MW Micro Powder Mill - When the project requires superfine powder, the MW micro powder mill is an excellent fit. It absorbs advanced Swedish grinding technology and can produce finished material to d97 ≤ 5 μm. Fineness is adjustable in the range of 325 mesh to 3250 mesh. The machine is equipped with a pulse precipitator, which supports greener production. Capacity is 0.5-25 T/H and input size is 10-20 mm.
Ball Mill - For beneficiation, cement, coal, metallurgy, chemicals, construction materials, and ceramics, the ball mill is a proven workhorse. It is a horizontal rotating device driven by an outer gear. The chamber contains ladder and ripple liners and steel balls of different sizes. The centrifugal force brings the balls to a certain height, and their impact grinds the material. Capacity is 0.65-50 T/H and input size is ≤ 25 mm. In a dust free plant, the ball mill needs well-sealed feed and discharge hoods connected to a dust collector.
How the Dust Free Grinding Circuit Works
A typical industrial system follows a clear sequence. First, a jaw crusher breaks large material to the mill feed size. Second, a vibrating feeder sends the crushed material into the mill uniformly. Third, grinding occurs between rollers and ring, or between steel balls and liners. Fourth, the air blower draws fine powder to the separator. Coarse particles fall back for another pass, while fine particles move to the dust collector or powder collector. Finally, cleaned air returns to the blower, forming a closed loop. This working principle is the basis of the MTW, LM, MW, and ball mill systems in a dust free mineral grinding plant.
Design Principles That Keep the Plant Dust Free
I have visited many grinding sites. The difference between a dusty plant and a clean one is not expensive extras; it is following basic design principles.
- Maintain negative pressure. The mill and all transfer points must operate under slight negative pressure. If a point becomes positive, dust will escape through any opening.
- Seal every joint. Flanges, inspection doors, screw conveyors, and airlocks must be properly sealed. A small gap can cause a visible dust plume.
- Use a closed air circuit. The air should recirculate through the blower, not be exhausted freely. This reduces dust emission and also reduces energy loss.
- Select the correct filter area. The pulse dust collector must have enough cloth area for the air volume. Otherwise the pressure drop rises and dust leaks.
- Automate the system. Automated control of feeder speed, separator speed, and air volume keeps the system stable and protects the dust collector from overloading.
Equipment Selection at a Glance
The table below compares five main mill options based on Liming Heavy Industry product data. Use this as a starting point for a dust free mineral grinding plant design.
| Mill | Capacity | Feed Size | Fineness | Typical Application |
|---|---|---|---|---|
| LM Vertical Roller Mill | 10-400 T/H | 30-55 mm | Adjustable; coarse to fine | Non-metallic minerals, coal, slag, cement |
| MTW European Type Trapezium Mill | 3-55 TPH | 30-50 mm | Adjustable | Heavy calcium carbonate, limestone desulfurization, solid fuel |
| Raymond Mill | 1.2-4.5 T/H | 15-25 mm | 613-44 μm | Calcium carbonate, gypsum, non-metallic ore |
| MW Micro Powder Mill | 0.5-25 T/H | 10-20 mm | 325-3250 mesh, d97 ≤ 5 μm | Superfine powder, calcium carbonate, desulfurization |
| Ball Mill | 0.65-50 T/H | ≤ 25 mm | Adjustable | Cement, coal, beneficiation, ceramics |
Field Notes from a Grinding Plant Design
When I review a dust free mineral grinding plant, I look for three practical things. First, material moisture. If the feed is sticky or above 6% humidity, the system needs drying or a hot air source. The LM vertical mill is useful because it integrates drying with grinding. Second, required fineness. For coarse powder from 613 μm to 44 μm, a Raymond mill or MTW mill is enough. For ultra-fine powder to 3250 mesh, the MW micro powder mill is more appropriate. Third, the dust collector. The filter bag area and pulse frequency must match the mill air volume. Too high an air-to-cloth ratio lets dust pass; too low makes the system expensive.
I also emphasize the rotary airlock under the dust collector. This small device maintains negative pressure while discharging collected dust. Many sites have a clean mill but a leaking airlock, and dust appears around the collector.
Why Dust Free Design Matters
A dust free plant improves product quality and safety. Escaped dust means lost fine powder and a poor working environment. In some materials, dust clouds increase the risk of fire or explosion. A sealed system protects operators, reduces cleanup time, and increases actual yield.
Dust control equipment is also a production asset. A pulse dust collector recovers product that would otherwise be lost. A closed-loop air system saves energy by reusing air. Automation reduces labor error. Together, these features lower total operating costs.
Frequently Asked Questions
1. What does dust free mean in a mineral grinding plant?
Dust free means the grinding system is designed with sealed equipment, negative pressure, and pulse dust collection so that mineral powder does not escape into the surrounding environment during normal operation.
2. How do I choose between an LM vertical roller mill and an MTW trapezium mill?
The LM vertical mill is better for large-scale projects, with capacity up to 400 T/H, and it can dry and grind materials in one unit. The MTW trapezium mill is a medium-capacity option, from 3 to 55 TPH, and is easier to maintain for non-metallic mineral powder making.
3. Can a dust free mineral grinding plant handle moist materials?
Yes, if the system includes drying capability. The LM vertical mill integrates drying and grinding. Other mills can be equipped with a hot air generator or dry material feeding system, provided the feed moisture is within the recommended range such as below 6% for Raymond mill applications.
4. What is the role of a pulse dust collector in this system?
The pulse dust collector removes fine powder from the conveying air before the air is recycled. It protects the blower, controls dust emissions, and collects finished product. Its pulse jet system cleans the filter bags automatically so production continues without interruption.
5. How can I maintain stable output fineness?
Set the separator speed correctly, keep the feed rate uniform, and maintain stable air volume. The automatic control systems on LM and MTW mills help operators adjust these parameters. Regular inspection of grinding rollers, rings, and classifier blades is also necessary.
