Published: May 8, 2026
In bulk solids processing, the difference between acceptable powder and high-value powder is often measured in microns. Liming Heavy Industry has developed a precise particle size control grinding system that integrates milling, classification, drying, conveying, and dust collection into one automated workflow. The portfolio includes the LM Vertical Roller Mill, MTW European Type Trapezium Mill, MW Micro Powder Mill, Raymond Mill, and Ball Mill, covering capacities from 0.5 to 400 T/H and fineness ranges from 613 μm down to d97 ≤ 5 μm. Industries such as cement, electric power, metallurgy, chemical processing, non-metallic minerals, and coal/slag preparation rely on these systems for stable particle size distribution, high uptime, and greener production. This article explains how precise particle size control is achieved through equipment selection, closed-loop operation, and intelligent automation.
Why Particle Size Control Matters
Particle size distribution directly affects product quality, reaction rate, bulk density, and downstream processing efficiency. In cement, finer and more uniform particles improve hydration strength. In power plant desulfurization, consistent limestone powder ensures stable SO2 absorption. In non-metallic mineral fillers, narrow particle size distribution is a prerequisite for surface treatment and compounding. For a grinding system to be truly precise, it must combine correct machine selection, accurate airflow, stable feeding, and effective classification. Liming Heavy Industry achieves this by engineering each mill around a specific material target rather than forcing a one-size-fits-all solution.
System Architecture and Closed-Loop Workflow

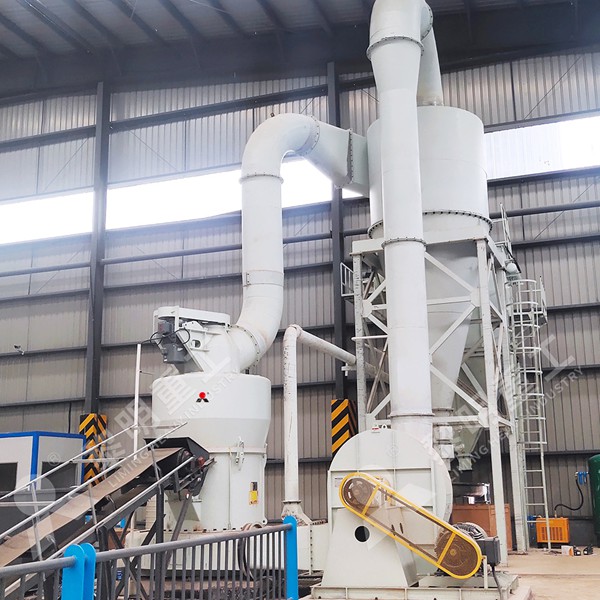

A precise grinding system is more than a single mill. The complete line includes a jaw crusher, vibrating feeder, hopper, variable-frequency belt feeder, mill, separator, air blower, dust collector, powder collector, electric cabinet, and motors. Large lump materials are first crushed to the required size. The belt feeder then sends material uniformly into the grinding chamber. Ground particles rise with the airflow to the separator; oversized particles return for regrinding, while qualified powder is collected. The air recirculates in a closed loop, and a pulse dust collector ensures emissions comply with national environmental standards.
This closed-loop design is essential to particle size control. It stabilizes pressure, reduces moisture interference, and prevents ambient air from disturbing the classification boundary. With an automatic electric control system, the operator can adjust separator speed, air volume, and feed rate in real time. This modern control capability allows the system to produce consistent batches even when material properties vary.
Core Grinding Equipment for Different Particle Size Targets
Liming Heavy Industry's product line covers almost every grinding scenario. Understanding each machine's strengths is the first step toward precise particle size control.
LM Vertical Roller Mill
The LM vertical roller mill uses a new milling device and automatic electric control system. It integrates drying, grinding, powder selection, and conveying into one compact unit. This mill is especially suitable for non-metallic minerals, coal, and slag. Capacity ranges from 10 to 400 T/H, and input size is 30-55 mm. The integrated design reduces auxiliary equipment requirements, making the process easier to control. In cement and mineral processing, the LM mill is often chosen for medium-to-large capacity lines with strict fineness requirements.
MTW European Type Trapezium Mill
The MTW mill is an upgrade of the traditional Raymond mill and pendulum mill. It holds patented technology and is designed for large-scale non-metallic mineral powder making. The system includes a grinding mill, separator, air blower, jaw crusher, vibrating feeder, hopper, dust collector, pipeline, powder collector, electric cabinet, and motors. Materials are ground between rings and rollers, then classified; oversize particles fall back for another pass. Airflow passes through the separator and returns to the blower, forming a closed circulation. A pulse dust collector is installed to meet environmental requirements. Capacity is 3-55 TPH, input size is 30-50 mm. It is widely applied in limestone desulfurization, heavy calcium carbonate, solid fuel grinding, and building materials.
MW Micro Powder Mill
For ultra-fine applications, the MW micro powder mill is the key equipment. It is a medium-speed micro-grinding mill that incorporates advanced Swedish grinding technology. The fineness can be adjusted between 325 mesh and 3250 mesh, with finished product up to d97 ≤ 5 μm. The roller and ring grinding mechanism, driven through a reducer and turnplate, provides intense shearing and compression. Small materials are pre-crushed by a hammer crusher, lifted into a hopper, and fed by vibrating feeder to the center of the turnplate. Under centrifugal force, the material falls to the raceway and is crushed into powder. With a capacity of 0.5-25 T/H and an input size of 10-20 mm, the MW mill is ideal for calcium carbonate, gypsum, desulfurization agents, non-metallic ore, and pulverized coal preparation. The pulse precipitator makes the production process greener.
Raymond Mill
The Raymond mill remains a versatile and reliable choice for certain applications. It is suitable for processing non-flammable and non-explosive materials with Mohs hardness below 7 and humidity less than 6%. The output fineness is between 613 μm and 44 μm, which covers medium-fine grinding needs. It is often used for calcium carbonate, gypsum, power plant desulfurization, non-metallic ore pulverizing, and pulverized coal preparation. Its capacity is 1.2-4.5 T/H and input size is 15-25 mm. For smaller plant setups, the Raymond mill offers a simple and economic path to controlled particle size.
Ball Mill
The ball mill is the key equipment for grinding after materials are crushed. It can grind all kinds of ores and other materials, and is widely used in beneficiation, construction, and chemical industry. A horizontal rotating device drives steel balls to impact and grind the material inside the chamber. Ladder liners, ripple liners, and various ball sizes create different grinding effects. Capacity is 0.65-50 T/H, and input size is ≤25 mm. In cement, coal, power plant desulfurization, metallurgy, and ceramics, the ball mill is appreciated for its robust structure and wide applicability. It is also useful when the target particle size is relatively coarse and the material is abrasive.
How the System Achieves Precision
Precise particle size control depends on three variables: stable feeding, efficient classification, and repeatable grinding pressure. Liming Heavy Industry's machines address each variable with dedicated engineering.
- Stable feeding: The variable-frequency belt feeder ensures a constant mass flow into the mill. Feed fluctuations are the most common cause of fineness drift.
- Efficient classification: The separators are designed to produce a sharp cut between fine and coarse particles. Over-grinding is minimized, and energy is not wasted.
- Repeatable pressure: In vertical and trapezium mills, the grinding pressure can be set and maintained by the control system. This allows the same recipe to be reproduced on different days and shifts.
From a plant operator's point of view, the automatic control system reduces manual intervention. From a quality manager's perspective, the narrow particle size distribution makes downstream products more predictable. From an executive's standpoint, the lower energy consumption and longer equipment life improve return on investment.
Environmental Protection and Energy Saving

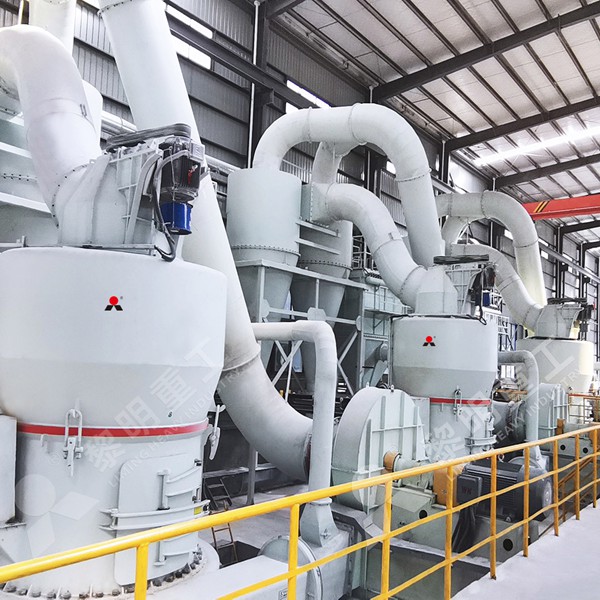

Modern grinding lines must meet strict environmental standards. The closed-loop air system prevents dust leakage. Pulse dust collectors capture fine particles before air is discharged. The recycling of airflow reduces the load on the dust collector and saves energy. In the MTW system, for example, airflow passing through the separator goes back to the air blower; it is not released into the atmosphere. This design reduces heat loss and dust emission simultaneously.
Liming Heavy Industry was founded in 1987 and has followed a strategy of scientific research, precision manufacturing, and technological innovation for more than 30 years. The company's modern management system and large production bases in the Zhengzhou High-Tech Industry Development Zone and Shangjie Industry Park support high-quality manufacturing. This long-term engineering experience is built into each grinding system, making it easier for users to comply with environmental regulations while improving productivity.
Application Scenarios
The versatility of the precise particle size control grinding system is clear in its application list. In the cement industry, vertical roller mills and ball mills are used for raw meal and cement grinding. In power plants, MTW and Raymond mills prepare limestone powder for desulfurization. In the chemical industry, MW micro powder mills process pigments, fillers, and additives. In metallurgy, ball mills grind ores for beneficiation. In coal preparation, vertical roller mills and micro powder mills handle pulverized coal for industrial boilers and injection systems.
Non-metallic mineral processing is a key focus area. The equipment can handle calcium carbonate, gypsum, barite, limestone, talc, kaolin, and many other minerals. Because the fineness can be adjusted by changing separator speed and classifying airflow, one grinding line can serve multiple products. This flexibility is especially valuable for custom milling plants and contract processors.
Conclusion
Precise particle size control is not a single machine feature; it is the result of an integrated system design. Liming Heavy Industry provides a complete grinding solution that combines proven equipment, automated control, closed-loop air circulation, and effective dust collection. From the high-capacity LM vertical roller mill to the ultra-fine MW micro powder mill, each machine has a clear role in the powder production chain. By choosing the right equipment and following the designed workflow, operators can achieve stable fineness, low energy consumption, and environmentally compliant production. For any enterprise that treats particle size as a quality parameter, this grinding system is a practical and forward-looking choice.
Frequently Asked Questions
1. What is the finest particle size the grinding system can achieve?
The MW Micro Powder Mill can produce finished products up to d97 ≤ 5 μm, with fineness adjustable between 325 mesh and 3250 mesh. For medium-fine grinding, the Raymond mill provides 613 μm to 44 μm output.
2. How does the system maintain consistent particle size over time?
The system uses an automatic electric control system, variable-frequency belt feeder, and efficient separator. Constant feed rate, stable airflow, and accurate classifier speed prevent fineness drift during production.
3. Can the same grinding system handle different materials?
Yes. The fineness can be adjusted through the separator and airflow control. The machines are widely used for calcium carbonate, gypsum, cement, coal, slag, and non-metallic ores within the specified capacity and hardness limits.
4. What environmental protections are included?
The grinding line is equipped with pulse dust collectors, and the air flow is recycled in a closed-loop system. This reduces dust emission, noise, and energy consumption, helping the plant meet national environmental standards.
5. What is the suitable input size for these mills?
Input sizes vary by model: LM vertical roller mill accepts 30-55 mm, MTW trapezium mill accepts 30-50 mm, MW micro powder mill accepts 10-20 mm, Raymond mill accepts 15-25 mm, and ball mill accepts ≤25 mm. Lumpy materials are normally pre-crushed by jaw crusher to reach the required size.
