Summary: This article provides a comprehensive overview of high fineness barite grinding mill systems manufactured by Liming Heavy Industry Co., Ltd. Established in 1987, Liming is a modern joint-stock enterprise integrating research, manufacturing and sales, headquartered in the HI-TECH Industry Development Zone of Zhengzhou with an 80,000 m² site and a 67,000 m² workshop in Shangjie Industry Park. For barite producers, Liming offers a wide range of mills, including the LM Vertical Roller Mill (10-400 t/h), Raymond Mill (1.2-4.5 t/h), MTW European Type Trapezium Mill (3-55 t/h), MW Micro Powder Mill (0.5-25 t/h, d97 ≤ 5 μm) and Ball Mill (0.65-50 t/h). This article covers fineness requirements, equipment selection, working principles, environmental protection and frequently asked questions.
Why High Fineness Barite Powder Matters
Barite, or barium sulfate, is a high-density mineral widely used in drilling fluids, paints, coatings, rubber, plastics, papermaking and barium chemical production. The value of barite powder depends strongly on its fineness, brightness, purity and particle size distribution. Drilling-grade barite usually requires 200-325 mesh product with specific gravity above 4.2. High-end filler applications require superfine powders with d97 ≤ 10 μm or d97 ≤ 5 μm. Therefore, choosing a reliable high fineness barite grinding mill is essential for consistent product quality.
Key Challenges in Barite Grinding
Although barite is relatively soft with a Mohs hardness of 3 to 3.5, its high density makes grinding and air classification more difficult than for many common minerals. Over-grinding and a wide particle size distribution can reduce product quality. High energy consumption and abrasive wear also reduce operating efficiency. A well-designed high fineness barite grinding mill should integrate an efficient grinding mechanism, a precise classifier, an automatic control system and a pulse dust collector. Liming's mills are built to handle these challenges with closed-circuit operation and variable-frequency feeding.
Liming's High Fineness Barite Grinding Mill Portfolio
Liming supplies several mill types for barite powder plants. The choice depends on required fineness, capacity, raw material size and site conditions.
MW Micro Powder Mill
The MW Micro Powder Mill is the primary choice for ultra-fine barite powder. It absorbs advanced Swedish grinding technology and is specially designed for superfine powder processing. Finished products can reach d97 ≤ 5 μm, and fineness is adjustable from 325 mesh to 3250 mesh. The mill has a capacity of 0.5-25 t/h and accepts an input size of 10-20 mm. It is equipped with a pulse precipitator, making the production process greener and more environmentally friendly.
In operation, the motor drives the main shaft and turnplates through a reducer. The reducer drives dozens of rollers to rotate against the raceway of the ring through pins. Crushed barite is transported to a hopper by an elevator; a vibrating feeder then delivers material to the center of the upper turnplate. Under centrifugal force, the material falls to the raceway and is crushed into powder by the rollers. The powder is carried upward by air flow and classified by a separator to obtain the desired fineness.
MTW European Type Trapezium Mill
MTW European Type Trapezium Mill is an upgraded product of the traditional Raymond mill and pendulum mill. It offers patented technology, stable performance, high productivity, environmental protection and energy saving. The capacity is 3-55 t/h, and input size is 30-50 mm. It is suitable for large-scale non-metallic mineral powder making, including barite, limestone and gypsum.
The complete system consists of a grinding mill, separator, air blower, jaw crusher, vibrating feeder, hopper, dust collector, pipe, powder collector, electric cabinet and motors. Large barite lumps are first crushed to the required size by a jaw crusher. Then a variable-frequency belt feeder sends material evenly into the mill. Barite is ground between the ring and rollers, and particles move upward with air flow. Coarse particles that cannot pass the separator fall back to be reground; fine particles are collected as finished product. Air is recycled in a closed loop, and the pulse dust collector ensures compliance with national environmental standards.
LM Vertical Roller Mill
LM Vertical Roller Mill is a large-capacity grinding solution. It adopts a new milling device and an automatic electric control system, integrating drying, grinding, powder selection and conveying. Capacity is 10-400 t/h, and input size is 30-55 mm. It focuses on non-metallic minerals, coal and slag. In barite projects, the LM mill is ideal for high-throughput production and can be arranged with a hot air system if surface moisture needs to be removed.
Raymond Mill
Raymond Mill is a widely used grinding machine for minerals in metallurgy, building materials, chemicals and mining. It is suitable for non-flammable and non-explosive materials with Mohs hardness below 7 and humidity below 6%. Capacity is 1.2-4.5 t/h, and input size is 15-25 mm. Output fineness ranges from 613 μm down to 44 μm, roughly 30-325 mesh. For barite powder used in oil drilling and basic filler applications, Raymond Mill offers simple operation and proven reliability.
Ball Mill
Ball Mill is a commonly used grinding plant and key equipment for milling after materials are crushed. Capacity is 0.65-50 t/h, and input size is ≤ 25 mm. The mill is a horizontal rotating device driven by an outer gear. Material enters through a quill shaft and is ground by steel balls raised by the rotating barrel. Ladder and ripple liners help control the grinding action. For barite, a ball mill can be combined with an air classifier to produce medium-fine powder with stable quality.
How to Select a High Fineness Barite Grinding Mill
- Fineness requirement: For 200-325 mesh, Raymond Mill or MTW Mill is suitable. For 400-1250 mesh, MTW or MW Micro Powder Mill is recommended. For d97 ≤ 5 μm, use MW Micro Powder Mill.
- Capacity requirement: Select based on project output. Raymond Mill covers 1.2-4.5 t/h, MTW covers 3-55 t/h, MW covers 0.5-25 t/h, Ball Mill covers 0.65-50 t/h, and LM Vertical Roller Mill covers 10-400 t/h.
- Raw material size and moisture: All listed mills can accept 10-55 mm feed after crushing. For moisture above 6%, choose a mill with drying capability, such as LM Vertical Roller Mill.
- Environmental compliance: Choose a system with a pulse dust collector and closed air circulation to meet dust emission standards.
- Layout and integration: The vertical mill has a compact layout; MTW and MW need a supporting line with crusher, hopper, elevator and dust collector.
Typical Barite Grinding Process

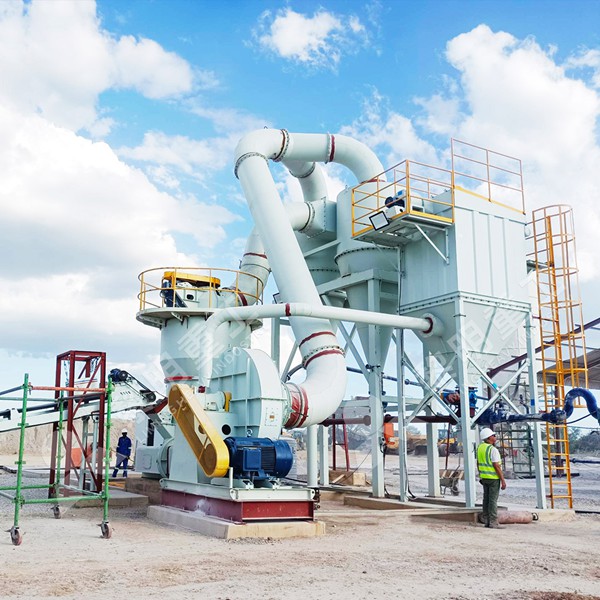

A complete high fineness barite grinding process includes a jaw crusher, vibrating feeder, bucket elevator, silo, variable-frequency belt feeder, grinding mill, separator, cyclone collector, pulse dust collector, induced draft fan and control cabinet. Raw barite is crushed to the feed size accepted by the mill. The crusher discharge is transported to the silo and then evenly fed into the mill. After grinding, the material is lifted by air flow and classified. Oversize particles return to the grinding zone, while qualified fine powder is collected. This closed-circuit arrangement reduces dust and improves efficiency.
Environmental Protection and Energy Saving
Liming's high fineness barite grinding mills are designed with modern environmental requirements in mind. The MW Micro Powder Mill and MTW European Type Trapezium Mill can be equipped with pulse dust collectors. The air system is closed, so fine powder is not easily released to the environment. Automatic electric control helps optimize mill load, reducing energy waste. These features meet national environmental protection standards and support sustainable mining and mineral processing.
Why Choose Liming Heavy Industry
Liming Heavy Industry Co., Ltd. was founded in 1987. The company mainly manufactures large and medium-sized crushing and grinding equipment. It is a modern joint-stock corporation with research, manufacturing and sales combined. The headquarters is located in the HI-TECH Industry Development Zone of Zhengzhou, covering 80,000 m². Another workshop in Shangjie Industry Park covers 67,000 m². Over the past 30 years, Liming has adhered to modern scientific management, precision manufacturing and innovation. The company persists in a scientific research and development strategy, cooperating in production, learning and research to improve product competitiveness. With a mature scientific research team and industry-leading technology, Liming has become a leader in domestic and overseas machinery manufacturing.
Conclusion
High fineness barite grinding mill technology is critical for producing barite powders that meet the strict requirements of drilling, filler and chemical applications. Liming Heavy Industry offers a complete portfolio, from the Raymond Mill for simple 200-325 mesh products to the MW Micro Powder Mill for ultra-fine powders up to 3250 mesh or d97 ≤ 5 μm. By considering fineness, capacity, moisture and environmental compliance, producers can select the right equipment and build an efficient, clean barite grinding line.
Frequently Asked Questions
1. What is a high fineness barite grinding mill?
A high fineness barite grinding mill is a grinding and classification system that produces barite powder with fineness ranging from about 325 mesh to 3250 mesh, or d97 ≤ 5 μm in the ultra-fine range. Liming manufactures several models for different capacity and fineness requirements.
2. Which mill is best for ultra-fine barite powder below 10 microns?
The MW Micro Powder Mill is designed for superfine powder processing. It can achieve finished products up to d97 ≤ 5 μm, and fineness is adjustable between 325 mesh and 3250 mesh. It uses a pulse precipitator for clean operation and is suitable for barite and other non-metallic minerals.
3. Can Raymond Mill be used for barite grinding?
Yes. Raymond Mill can process barite with Mohs hardness below 7 and moisture below 6%. Its output fineness ranges from 613 μm to 44 μm, covering the 200-325 mesh range commonly used in drilling fluid systems.
4. What are the capacity ranges of Liming barite grinding mills?
Liming offers a wide capacity range: Raymond Mill 1.2-4.5 t/h, MW Micro Powder Mill 0.5-25 t/h, MTW European Type Trapezium Mill 3-55 t/h, Ball Mill 0.65-50 t/h, and LM Vertical Roller Mill 10-400 t/h.
5. Are Liming high fineness barite grinding mills environmentally friendly?
Yes. The mills can be equipped with pulse dust collectors and closed-circulation air systems. These designs help minimize dust emissions and comply with national environmental protection standards in mineral processing.
