Low maintenance vertical grinding mills are redefining efficiency in the global minerals processing industry. Combining compact mechanical design, intelligent control, and robust wear-resistant components, these mills allow cement plants, power stations, and mineral processors to operate continuously without excessive downtime. Liming Heavy Industry has developed the LM Vertical Roller Mill as a high-capacity grinding solution that integrates drying, grinding, powder selection, and conveying in one system. With a capacity of 10 to 400 tons per hour and an input size range of 30 to 55 millimeters, the LM series is designed for non-metallic minerals, coal, and slag applications in cement, electricity, metallurgy, and chemical industries. This article explores the low maintenance features, working principle, and best practices that keep LM vertical grinding mills running at peak performance.
Overview of the Low Maintenance Vertical Grinding Mill
Vertical grinding mills have become the preferred equipment for large-scale powder production because they consume less floor space, simplify material flow, and reduce energy costs. The LM vertical roller mill from Liming Heavy Industry takes this advantage further by using a new milling device and an advanced automatic electric control system. The traditional need for separate drying systems and grinding circuits is eliminated because the mill combines multiple processes in a single machine. This integration directly reduces the number of auxiliary components that can fail, which is a key reason why the LM mill is considered a low maintenance vertical grinding mill.
Key Design Features That Reduce Maintenance
Integrated Drying, Grinding, and Conveying
One of the most important low maintenance characteristics is the integrated design. Material entering the mill is simultaneously dried by hot gas, ground between rollers and the grinding table, and conveyed upward by an internal air stream. By removing separate dryers, bucket elevators, and multiple transfer points, the LM mill minimizes wear-prone mechanical equipment. Fewer components mean fewer inspections, fewer lubrication points, and less unplanned maintenance.
New Milling Device and Wear Management
Liming Heavy Industry has developed a new milling device that optimizes the contact geometry between the roller and the grinding table. This design distributes grinding pressure more evenly and reduces localized wear. The grinding rollers and table segments can be replaced with relative ease, and their wear life is extended by using high-quality alloys. For plant maintenance teams, this means scheduled repair work can replace emergency interventions.
Automatic Electric Control System

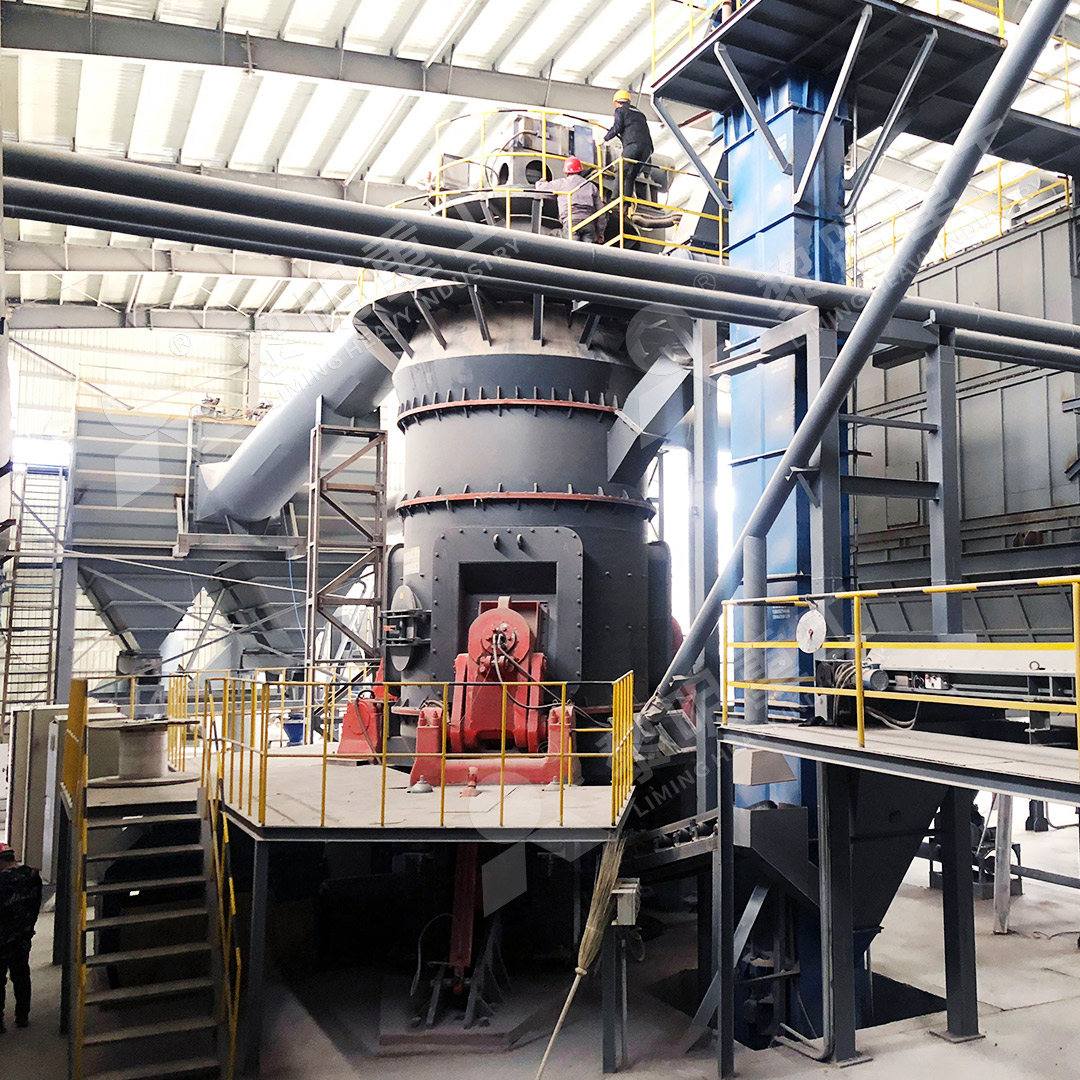

The LM vertical mill is equipped with an automatic electric control system that continuously monitors process conditions. It adjusts parameters such as feed rate, air temperature, separator speed, and differential pressure to maintain stable operation. The control system protects the mill from abnormal vibrations, sudden power fluctuations, and material overloads. Automated alarms and trip functions prevent severe mechanical damage, greatly reducing the cost of maintenance and the duration of downtime.
Closed Airflow System and Dust Collection
Airflow inside the LM mill is for the most part recycled through a closed-loop system. This design prevents dust escape, lowers the load on the bag filter, and keeps the working environment cleaner. Cleaner conditions reduce wear on the fan, separator, and conveying pipes. With less abrasive dust circulating in the workshop, the entire grinding system naturally requires less maintenance.
Technical Specifications of the LM Vertical Grinding Mill
- Capacity: 10-400 T/H
- Input size: 30-55 mm
- Applications: cement, electricity, metallurgy, chemical, non-metallic mineral ore
- Focused material areas: non-metallic minerals, coal, and slag
- Process integration: drying, grinding, powder selection, and conveying
These specifications place the LM vertical roller mill in the heavy-duty category. It can handle large feed sizes and maintain stable output even with fluctuating material properties. For operators, the wide capacity range means one model can serve multiple plant configurations, from medium-sized mineral powder lines to large-scale integrated cement production.
Working Principle of a Low Maintenance Vertical Grinding Mill
The LM vertical mill operates on a straightforward principle. Material is fed from the center of the grinding table through a vibration-free feeding device. Centrifugal force moves the material outward into the grinding zone. Grinding rollers, operating under hydraulic pressure, crush and grind the material against the rotating table. Hot gas entering around the table dries the material during the grinding process. The fine powder is carried upward to the separator, where oversized particles are returned to the grinding zone for further size reduction. Finished product then flows to a cyclone collector or bag filter.
Because the separator returns oversize material automatically, the mill does not require external classification equipment. This closed-loop arrangement is another reason for low maintenance. The entire system is stable, predictable, and easy to tune. Operators can adjust the fineness of the finished product by changing separator speed without mechanical modification.
Industrial Applications and Material Versatility
Low maintenance vertical grinding mills are widely used in industries where continuous process reliability is non-negotiable. The LM series is designed for cement plants that need stable raw meal grinding, power plants that require pulverized coal preparation, and steel plants that process slag into valuable additives. In the non-metallic minerals industry, the mill is used for calcium carbonate, gypsum, limestone, and many other ores.
The mill is also suitable for chemical and metallurgical processes because the closed environment prevents contamination. The ability to dry materials inside the mill makes it especially useful for moisture-sensitive production lines. By choosing the correct hot gas source and separator setting, the same mill can produce very different products from day to day. This flexibility reduces the need for multiple machines and reduces the total maintenance burden of the plant.
Best Practices for Maintaining a Vertical Grinding Mill
Even a low maintenance vertical grinding mill requires a disciplined maintenance program. To get the longest service life from an LM mill, maintenance teams should follow these best practices:
1. Monitor Vibration and Differential Pressure
Vibration is the most common warning sign in a vertical mill. The automatic control system will react to abnormal vibration, but maintenance teams should also record data during steady operation. An increase in vibration may indicate uneven bed depth, worn rollers, or a hydraulic pressure issue. Early diagnosis reduces damage to bearings and gearboxes.
2. Keep the Hydraulic System Clean
The grinding pressure is generated by a hydraulic system. Regularly inspect oil quality, pressure settings, and accumulator performance. Contaminated hydraulic oil can cause erratic roller movement and uneven wear. Filter replacement should follow the recommended schedule, and leakage points must be repaired immediately.
3. Inspect Rollers and Table Segments Periodically
Although the LM mill uses wear-resistant materials, rollers and table liners will eventually wear. Schedule laser measurements or visual inspections during planned shutdowns. If the profile becomes uneven, the grinding efficiency drops and the mill becomes harder to stabilize. Resurfacing or replacing wear parts before they fail is less expensive than repairing the main machine.
4. Check the Airflow and Sealing System
Airflow leakage reduces drying efficiency and changes the flow pattern inside the mill. Inspect the seal between the mill housing and the rotary feeder, and check the condition of expansion joints. A properly sealed mill keeps internal velocities stable and protects the separator and filter from unnecessary dust loading.
5. Use Predictive Maintenance Tools
Modern low maintenance vertical grinding mills can be connected with condition-monitoring systems. Temperature sensors, vibration probes, and pressure transmitters provide real-time data. Using trend analysis, a plant can predict bearing failure, gearbox trouble, or mill blockage before it causes emergency shutdown. Predictive maintenance increases equipment availability and reduces spare parts inventory.
Why Liming Heavy Industry Is a Trusted Manufacturer
Liming Heavy Industry Co., Ltd. was founded in 1987 and has grown into a modern joint-stock enterprise that combines research, manufacturing, and sales. The company's main production base is located in the HI-TECH Industry Development Zone of Zhengzhou, covering an area of 80,000 square meters. A second workshop in the Shangjie Industry Park adds 67,000 square meters of manufacturing capacity. Over more than 30 years, Liming has developed a scientific management system and a mature research team dedicated to precision manufacturing and continuous innovation.
For the LM vertical mill, this engineering experience translates into better assembly accuracy, reliable components, and practical after-sales support. The company focuses on the core technologies of non-metallic minerals, coal, and slag grinding, which are the most demanding applications in the industry. By combining scientific research with field experience, Liming has become a well-known equipment supplier in domestic and overseas machinery markets.
Conclusion
The low maintenance vertical grinding mill is not simply a smaller machine or a quieter grinder. It is a complete grinding system designed around reliability, process integration, and ease of maintenance. The Liming Heavy Industry LM Vertical Roller Mill offers strong performance with a capacity of 10-400 T/H, accepts feed sizes of 30-55 mm, and combines drying, grinding, separation, and conveying in a single automated unit. Its advanced control system, closed airflow loop, and wear-conscious design make it a strong choice for cement, power, metallurgy, chemical, and non-metallic mineral operations. By following a practical maintenance program, plant teams can maximize uptime, reduce spare part costs, and maintain product quality for decades.
Frequently Asked Questions
1. What is the capacity range of a low maintenance vertical grinding mill?
The LM Vertical Roller Mill from Liming Heavy Industry has a capacity range of 10 to 400 tons per hour. The exact output depends on material hardness, moisture content, final fineness, and the selected mill size.
2. How does the LM vertical mill reduce maintenance costs?
The LM mill reduces maintenance by integrating drying, grinding, powder selection, and conveying into one system, so there are fewer auxiliary machines to inspect. Its automatic control system also protects the mill from abnormal operating conditions, preventing severe damage and unscheduled downtime.
3. Can the vertical grinding mill handle wet or moist materials?
Yes. The LM vertical mill is designed with a drying function. Hot gas is introduced into the mill so that moisture can be evaporated while the material is being ground. This makes it especially suitable for materials with high moisture content, including slag and certain mineral ores.
4. Which industries commonly use the LM vertical roller mill?
The mill is used in cement, electricity, metallurgy, chemical, and non-metallic mineral ore industries. It has proven especially effective for non-metallic minerals, coal preparation, and slag grinding, where continuous operation and stable product quality are essential.
5. What input material size can the LM vertical mill accept?
The standard feed size is between 30 and 55 millimeters. The mill's design allows it to handle this feed range without a secondary crushing stage in many applications, simplifying the process line and reducing overall maintenance requirements.
