Published: June 18, 2025
Summary: This article discusses the wear-resistant grinding roller for mills, based on Liming Heavy Industry Co., Ltd.’s manufacturing experience since 1987. Liming produces large and medium-sized crushing and grinding equipment at its 80,000 m2 headquarters and 67,000 m2 workshop. The product range includes LM vertical roller mill, Raymond mill, MTW European trapezium mill, MW micro powder mill, and ball mill. This article explains why roller wear resistance is critical, how wear-resistant rollers are made, how they perform in different mills, and how maintenance can extend service life. A five-question FAQ is included at the end.
Introduction
Grinding rollers are the core components of roller mills. They press against a grinding table, ring, or raceway to crush material. During operation, the roller surface is exposed to strong abrasion, impact, and heat. If the roller wears too quickly, the grinding profile changes, mill vibration increases, and product fineness becomes unstable. Therefore, a wear-resistant grinding roller is essential for high productivity and low operating cost.

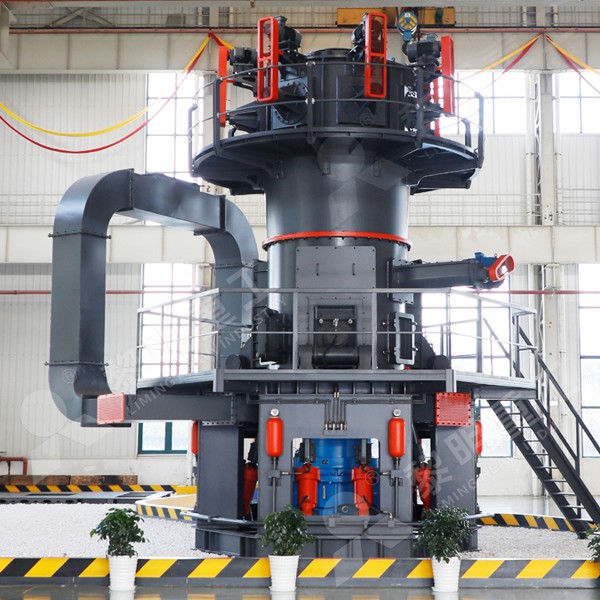

Figure 1: Wear-resistant grinding roller in a vertical roller mill.
Why Wear Resistance Matters
A worn roller creates a larger contact area, which reduces the grinding pressure per unit area. As a result, the mill must consume more energy to produce the same amount of fine powder. This also causes more material to circulate back to the separator, reducing capacity and increasing vibration.
For large grinding systems in cement plants, power stations, and mineral processing plants, unexpected roller wear can lead to unplanned downtime. A high-quality wear-resistant roller maintains its profile longer, keeps the grinding gap stable, and ensures consistent product quality. This is especially important for coal pulverizing, slag grinding, calcium carbonate processing, and desulfurization.
Materials and Manufacturing
Liming Heavy Industry uses advanced alloy materials and heat treatment methods to produce wear-resistant grinding rollers. The outer layer must have high hardness to resist abrasion, while the core must have sufficient toughness to absorb impact loads. Common manufacturing techniques include alloying, controlled casting, heat treatment, and hardfacing.
Because different mills have different loading conditions, each roller design is matched to its mill type. For example, the LM vertical roller mill uses a large roller against a flat grinding table, while the Raymond and MTW mills use rollers against a curved ring. The wear-resistant roller material is selected according to the contact stress and material abrasiveness.
Roller Applications in Liming’s Mills
LM Vertical Roller Mill
The LM vertical roller mill has an automatic control system and integrates drying, grinding, powder selection, and conveying. It is used in cement, electricity, metallurgy, chemical, and non-metallic mineral industries, especially for non-metallic minerals, coal, and slag. The mill capacity is 10 to 400 t/h and the input size is 30 to 55 mm. The large throughput demands a wear-resistant roller that can operate continuously.
Raymond Mill
The Raymond mill is widely used in metallurgy, building materials, chemicals, mining, and minerals. It suits non-flammable materials with hardness below 7 Mohs and moisture below 6%. Output fineness is between 613 μm and 44 μm. Wear-resistant rollers are important because the roller swings outward and presses directly against the grinding ring. Capacity is 1.2 to 4.5 t/h and input size is 15 to 25 mm.
MTW European Type Trapezium Mill
The MTW European trapezium mill is an upgraded Raymond and pendulum mill. It has patented technology, stable performance, high productivity, and environmental protection. The grinding system includes a mill, separator, blower, jaw crusher, vibrating feeder, hopper, dust collector, pipe, powder collector, electric cabinet, and motors. Material is ground between the ring and rollers. Oversize particles fall down and are ground again, while fine powder is collected. A pulse dust collector helps meet environmental standards. Applications include limestone desulfurization, heavy calcium carbonate processing, non-metallic mineral powder, solid fuel, and building materials. Capacity is 3 to 55 t/h and input size is 30 to 50 mm.

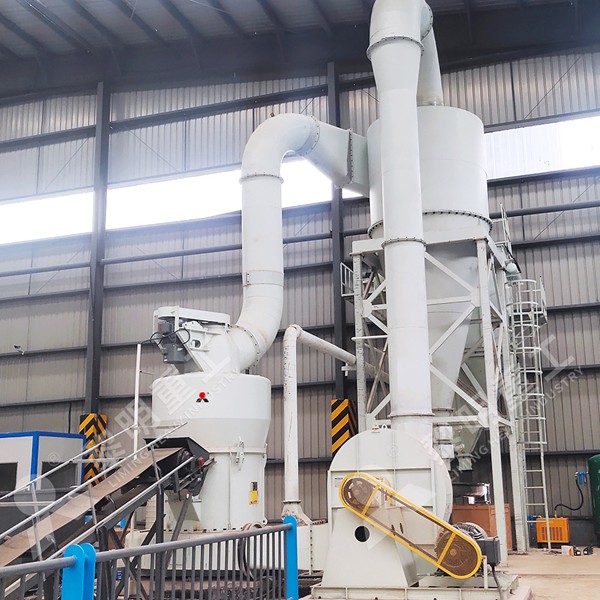

Figure 2: Wear-resistant roller assembly for MTW and Raymond mills.
MW Micro Powder Mill
The MW micro powder mill is a medium-speed micro-grinding mill using advanced Swedish grinding technology. It produces fine powder up to d97 ≤ 5 μm, with adjustable fineness from 325 to 3250 mesh. A pulse precipitator makes the process clean and environmentally friendly. The motor drives the main shaft and turnplate through a reducer, and dozens of rollers rotate against the ring raceway to crush material. This process requires precise roller clearance and high wear resistance. Capacity is 0.5 to 25 t/h and input size is 10 to 20 mm.
Ball Mill
Ball mills use steel balls and lining boards as grinding media instead of rollers. However, the same wear-resistance principles apply. The ball mill is used in beneficiation, construction, and the chemical industry for cement, coal, desulfurization, metallurgy, ceramics, and non-metallic minerals. The mill rotates horizontally, and centrifugal force causes the steel balls to impact and grind the material. Capacity is 0.65 to 50 t/h and input size is ≤ 25 mm.
Efficiency and Maintenance Benefits
A wear-resistant grinding roller helps maintain the correct pressure zone in the mill. This reduces energy consumption, stabilizes output, and improves fineness control. It also reduces vibration, protecting bearings and gears from fatigue.
Maintenance is still necessary. Operators should inspect the roller surface, check the gap between roller and ring, and ensure that feed size is within the range specified for each mill. Foreign objects should be removed before entering the mill. When wear is excessive, hardfacing or roller rebuilding can restore the profile and extend service life.
Conclusion
Wear-resistant grinding rollers are vital to the reliability and efficiency of mills. Liming Heavy Industry has over 30 years of experience in building grinding equipment, including LM vertical mills, Raymond mills, MTW trapezium mills, MW micro powder mills, and ball mills. By selecting the right wear-resistant roller and maintaining it well, operators can reduce downtime and achieve stable powder production.
Frequently Asked Questions
1. What is a wear-resistant grinding roller?
It is a mill component made from hard alloy material. It presses against a table or ring to crush material and is designed to resist abrasion and impact for a long service life.
2. How does a worn roller affect mill performance?
A worn roller reduces grinding pressure, increases vibration, lowers capacity, and makes product fineness unstable. It also raises energy consumption.
3. Can wear-resistant rollers be used for different materials?
Yes, when the roller is designed for the specific mill and material. Liming’s mills can process coal, slag, cement, calcium carbonate, gypsum, and many non-metallic minerals.
4. How can the service life of a grinding roller be extended?
Use correct feed size, remove metal scraps, check lubrication and seals, inspect the roller profile regularly, and carry out hardfacing before serious damage occurs.
5. Why is the grinding roller important for product fineness?
The roller and ring set the grinding pressure and gap. A stable roller profile keeps the gap constant, so the separator receives a consistent stream of fine powder.
