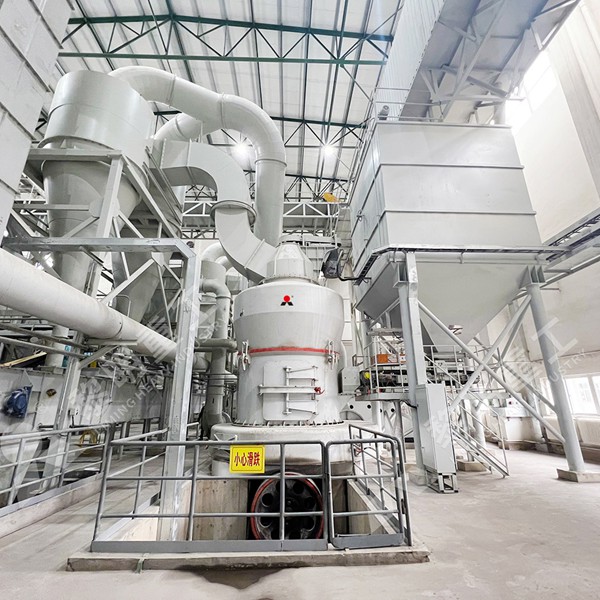

Limestone is one of the most widely used minerals in modern industry, from power plant desulfurization to the production of heavy calcium carbonate and construction materials. Grinding limestone into powder, however, consumes a significant amount of electricity. This article provides a complete overview of energy efficient limestone grinding machines developed by Liming Heavy Industry Co., Ltd. Founded in 1987, Liming is a modern joint-stock enterprise integrating research, manufacturing, and sales, with headquarters in the HI-TECH Industry Development Zone of Zhengzhou covering 80,000 m² and an additional workshop in Shangjie Industry Park covering 67,000 m². Over the past 30 years, the company has focused on scientific management, precision manufacturing, and continuous innovation. Its energy efficient limestone grinding portfolio includes the LM Vertical Roller Mill with a capacity of 10-400 T/H and input size of 30-55 mm, the MTW European Type Trapezium Mill with a capacity of 3-55 TPH and input size of 30-50 mm, the Raymond Mill with a capacity of 1.2-4.5 T/H and input size of 15-25 mm, the MW Micro Powder Mill with a capacity of 0.5-25 T/H and input size of 10-20 mm, and the Ball Mill with a capacity of 0.65-50 T/H and input size of ≤25 mm. These machines are designed to lower energy consumption, improve product fineness, and meet environmental standards.
Why Energy Efficiency Matters in Limestone Grinding
In any grinding operation, energy is often the largest operating cost. For limestone, the challenge is even greater because the feed material can be dry or slightly wet, abrasive, and variable in hardness. A machine that is not optimized will waste energy through excessive recirculation, high idle power, or poor powder classification. Energy efficient limestone grinding machines address these losses by combining mechanical design with intelligent control.
At Liming, we have spent more than three decades refining our grinding technology. Our approach starts with the mill body itself: grinding rollers and rings are made from wear-resistant materials, so more energy is used for actual size reduction and less for component wear. Then we add automation. Variable-frequency feeders regulate the feed rate, and automatic electric control systems keep the mill running at its most efficient load point. Finally, the whole system is sealed. Air flow is recycled, fines are captured by pulse dust collectors, and the risk of energy loss through leaks is minimized. The result is a grinding line that does more work per kilowatt-hour.
Core Technologies That Make Limestone Grinding More Efficient
Energy efficiency is not a single feature. It comes from several technologies working together. In our LM Vertical Roller Mill, for example, drying, grinding, powder selection, and conveying are integrated into one unit. This integration eliminates the need for a separate dryer and reduces the number of auxiliary machines, which directly reduces system energy consumption.
Our MTW European Type Trapezium Mill uses patented technology and an upgraded internal structure compared with traditional Raymond and pendulum mills. The grinding roller and ring are designed with a trapezoidal shape, which creates a larger effective contact area. Materials are crushed more uniformly, and small particles can pass through the separator without being over-ground. Over-grinding is one of the hidden energy wastes in limestone powder production, and the MTW design avoids it.
The air system also contributes to energy savings. In the MTW and LM systems, the air flow passing through the separator goes back to the air blower for recycling. This closed-loop design reduces the need to heat or condition large volumes of outside air. The pulse dust collector at the tail end not only keeps the emission clean but also recovers fine powder as finished product, preventing valuable material from being wasted.
A Practical Look at Our Energy Efficient Limestone Grinding Machines
Choosing the right machine depends on your feed size, target fineness, capacity, and site conditions. Here is a closer look at each option.

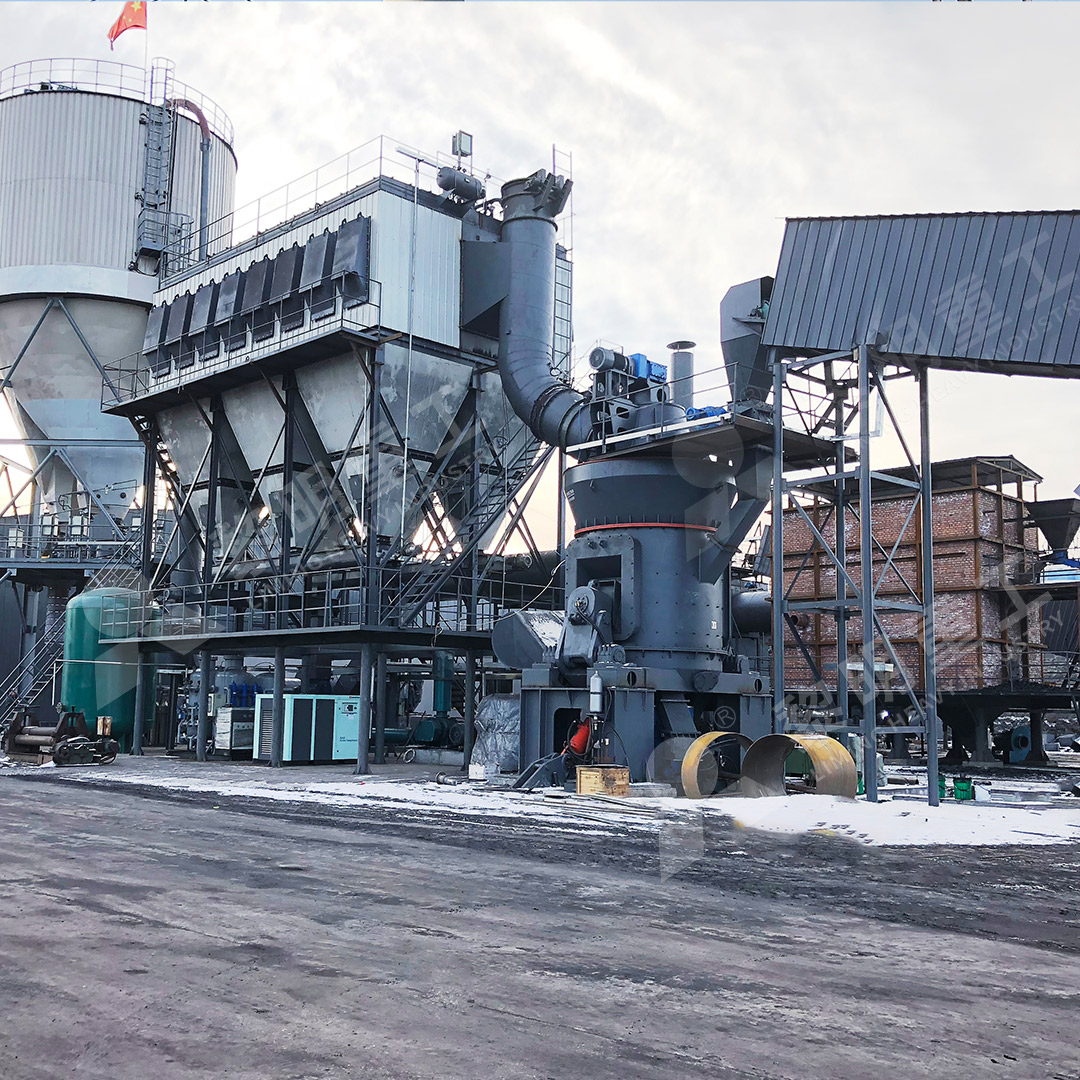

LM Vertical Roller Mill
The LM Vertical Roller Mill is our answer to large-scale limestone processing. With a capacity of 10-400 T/H and an input size of 30-55 mm, it is well suited for cement, electricity, metallurgy, chemical, and non-metallic mineral industries. It focuses on non-metallic minerals, coal, and slag. Because it combines grinding and drying in a single mill, it can handle limestone with a certain moisture content without an external dryer. The automatic electric control system constantly adjusts the grinding pressure and separator speed to keep energy consumption per ton of finished powder low. For operators who need high throughput and stable quality, the LM mill is a reliable partner.
MTW European Type Trapezium Mill
If you need a medium-capacity mill that is more efficient than a traditional pendulum mill, the MTW European Type Trapezium Mill is the upgrade to consider. It is the evolution of the Raymond mill and pendulum mill, with patented technology, stable performance, high productivity, and strong environmental protection. Capacity is 3-55 TPH, and the input size is 30-50 mm. It is especially popular for limestone desulfurization in power plants, heavy calcium carbonate processing, non-metallic mineral powder making, and solid fuel grinding. The working principle is simple but effective: large materials are first crushed by a jaw crusher, then fed evenly and continuously through a variable-frequency belt feeder into the mill. Material is ground between the ring and rollers, carried upward by air flow, classified by a separator, and collected as finished product. Oversized particles fall back for another pass. The closed air system and pulse dust collector make the whole process clean and energy efficient.
Raymond Mill
For smaller operations or on-site powder production, the Raymond Mill remains a practical choice. It suits materials under 7 Mohs hardness and with less than 6% humidity. The output fineness is between 613 μm and 44 μm, which covers most standard limestone powder applications. Capacity is 1.2-4.5 T/H with an input size of 15-25 mm. Although the Raymond mill is one of the oldest grinding designs, our modern version uses improved sealing, a more efficient blower, and refined separator blades. It is a compact, easy-to-operate energy efficient limestone grinding machine for small and medium plants.
MW Micro Powder Mill
When the application requires ultra-fine limestone powder, the MW Micro Powder Mill comes into play. It absorbs advanced Swedish grinding technology and is good at superfine powder processing. The finished product can reach d97 ≤ 5 μm, and fineness is adjustable between 325 mesh and 3250 mesh. Capacity is 0.5-25 T/H, and input size is 10-20 mm. The mill uses a medium-speed rotating turnplate, a reducer, and dozens of rollers that grind material against a ring raceway. With a pulse precipitator, production is greener and more environmentally friendly. If you need fine coating-grade or filler-grade limestone powder, this machine helps you avoid the high energy cost of multiple passes through conventional mills.
Ball Mill
For industries such as cement, beneficiation, and ceramics, the Ball Mill remains the key equipment after crushing. It can grind all kinds of ores and materials. Capacity is 0.65-50 T/H, and input size is ≤25 mm. The ball mill is a horizontal rotating device transmitted by an outer gear. Materials enter the grinding chamber through the quill shaft. Inside, there are ladder liners, ripple liners, and steel balls of different sizes. The rotating barrel creates centrifugal force that carries the balls to a certain height; they then fall and impact the material, grinding it through impact and attrition. The ground powder is discharged through the discharge board. In our design, we have optimized the liner geometry and ball gradation to improve grinding efficiency and reduce unnecessary power draw.
How to Choose the Right Energy Efficient Limestone Grinding Machine
Energy efficiency is always relative to your exact process. A machine that is too large for your throughput will run at partial load and waste energy. A machine that is too small will need to run longer to achieve the same output. Therefore, start by defining your required capacity, feed size, finished fineness, and the moisture content of your limestone. Then consider the site constraints: available floor area, dust handling, and local environmental regulations.
From our experience, power plant desulfurization projects usually prefer the MTW European Type Trapezium Mill because it produces a stable 250 mesh or 325 mesh powder with low energy consumption. Large cement grinding stations often choose the LM Vertical Roller Mill due to its high capacity and integrated drying. Calcium carbonate manufacturers who need ultra-fine products may turn to the MW Micro Powder Mill. Existing operators who want a simple, low-investment upgrade often stay with the Raymond Mill but choose our improved version.
Every Liming machine is backed by a mature scientific research team. We follow the principle of improving product competitiveness through scientific research and technological progress. We also combine production, learning, and research to stay close to the industry's technological frontier. This means our energy efficient limestone grinding machines are not static; they improve with field feedback and new engineering developments.
Conclusion
Energy efficiency in limestone grinding is about more than motor power ratings. It comes from intelligent mechanical design, integrated process flow, stable automation, and clean operation. Liming Heavy Industry offers a complete range of machines, from the large-capacity LM Vertical Roller Mill to the ultra-fine MW Micro Powder Mill, all engineered to reduce energy consumption per ton of powder. With more than 30 years of manufacturing experience, two production bases, and a focus on innovation, Liming is prepared to help you build a limestone powder line that is productive, economical, and environmentally responsible. If you have a project in mind, we encourage you to share your raw material data and target fineness; our engineers will recommend the most energy efficient solution for your specific application.
Frequently Asked Questions
1. What is the most energy efficient limestone grinding machine?
There is no one-size-fits-all answer. For large plants, the LM Vertical Roller Mill usually offers the lowest energy consumption per ton. For medium capacity and desulfurization powder, the MTW European Type Trapezium Mill is an excellent choice. For small or ultra-fine production, the Raymond Mill or MW Micro Powder Mill can be more suitable. The key is to match the machine to your capacity, feed size, and target fineness.
2. How does Liming reduce energy consumption in limestone grinding?
Liming reduces energy consumption through integrated mill design, closed-loop air systems, variable-frequency feeders, automatic electric control, wear-resistant components, and pulse dust collectors. These technologies minimize over-grinding, reduce auxiliary equipment, and recover fine powder that would otherwise be lost.
3. What fineness can these limestone grinding machines achieve?
The Raymond Mill can produce powder between 613 μm and 44 μm. The MTW European Type Trapezium Mill is ideal for standard desulfurization and heavy calcium carbonate powder. The MW Micro Powder Mill can reach up to d97 ≤ 5 μm, with fineness adjustable between 325 mesh and 3250 mesh.
4. Are these limestone grinding machines environmentally friendly?
Yes. The machines are equipped with pulse dust collectors and closed air circulation systems. They comply with national environmental protection standards and help reduce dust emission, material waste, and energy consumption during limestone powder production.
5. Can I use one machine for both coarse and ultra-fine limestone powder?
Most Liming grinding machines allow fineness adjustment within a certain range. The MTW and Raymond mills can handle standard coarse and fine powder applications. For ultra-fine powder, the MW Micro Powder Mill is the better choice. If you need a very wide range, the best solution is to choose a machine that matches your most common product specification, then adjust the separator speed and grinding pressure as needed.
