Published: April 26, 2026
Executive Summary
A low energy consumption ore pulverizer is the centerpiece of any profitable mineral grinding operation. As energy costs rise and environmental regulations tighten, processing plants need equipment that reduces power usage while maintaining high throughput and precise particle size control. Liming Heavy Industry, founded in 1987, has developed a complete range of grinding mills designed to meet these challenges. The product line includes the LM Vertical Roller Mill with a capacity of 10-400 T/H, the Raymond Mill with a capacity of 1.2-4.5 T/H, the MTW European Type Trapezium Mill with a capacity of 3-55 TPH, the MW Micro Powder Mill with a capacity of 0.5-25 T/H, and the Ball Mill with a capacity of 0.65-50 T/H. These machines integrate drying, grinding, classification and conveying to minimize energy losses, reduce material handling and comply with modern environmental standards. This article explores the technology, product features, selection criteria and common questions around low energy consumption ore pulverizers.
Why Energy Efficiency Matters in Ore Pulverization
Ore pulverization is one of the most energy-intensive steps in the entire mineral processing chain. In many plants, grinding can consume more than 30 percent of the total electricity used on site. Older mills often waste energy through excessive wear, uncontrolled over-grinding, inefficient air flow and poor classification. The result is higher electricity bills, shorter equipment life and more frequent maintenance stops. A low energy consumption ore pulverizer changes this picture by matching the grinding force to the material properties and by avoiding unnecessary fine grinding. In practical terms, energy-efficient pulverizers help operations achieve the same or better output with less power, which directly improves profit margins.
Core Technologies Behind a Low Energy Consumption Ore Pulverizer
Modern ore pulverizers from Liming Heavy Industry are built around several core technologies that reduce energy consumption without compromising output. The first is integrated processing. Instead of using separate machines for drying, grinding, classification and conveying, the pulverizer combines these functions into one closed system. This saves floor space, reduces auxiliary motors and cuts the total energy demand of the grinding circuit. The second technology is advanced classification. Oversized particles are separated and returned to the grinding zone, while properly sized powder leaves the system immediately. This prevents over-grinding, which is one of the biggest sources of wasted energy in traditional pulverizers.
The third important feature is a closed-loop air circulation system. In mills such as the MTW European Type Trapezium Mill, air flow passes through the separator and returns to the air blower for recycling. This design keeps the internal environment stable and reduces the load on external dust collection equipment. The fourth technology is pulse dust collection. Equipped with a pulse precipitator, the system captures fine dust at the source, complies with national environmental protection standards and prevents valuable product from escaping into the atmosphere. From an operational point of view, these technologies mean that a low energy consumption ore pulverizer does more work per kilowatt-hour than conventional grinding equipment.
Complete Product Range for Low Energy Ore Grinding
LM Vertical Roller Mill
The LM Vertical Roller Mill uses a new milling device and an automatic electric control system. It integrates drying, grinding, powder selection and conveying in one unit. This makes it an excellent low energy consumption ore pulverizer for cement, electricity, metallurgy, chemical and non-metallic mineral industries. It is especially productive in the three major areas of non-metallic minerals, coal and slag. With a capacity of 10-400 T/H and an input size of 30-55mm, the LM vertical mill can replace large and complex grinding systems with one compact, energy-efficient machine. The automatic control system adjusts operating parameters in real time, so the mill uses only the energy necessary for the current feed conditions.
Raymond Mill
The Raymond Mill is a proven, reliable pulverizer for materials under 7 Mohs hardness and less than 6 percent humidity. It is widely used in metallurgy, building materials, chemicals and mining. The output fineness ranges from 613μm to 44μm, giving operators the flexibility to produce different powder specifications from one low energy consumption ore pulverizer. With a capacity of 1.2-4.5 T/H and an input size of 15-25mm, the Raymond Mill is ideal for medium-scale operations that need consistent quality without excessive energy use. It is commonly applied in calcium carbonate processing, gypsum crushing, power plant desulfurization, non-metallic ore pulverizing and pulverized coal preparation.

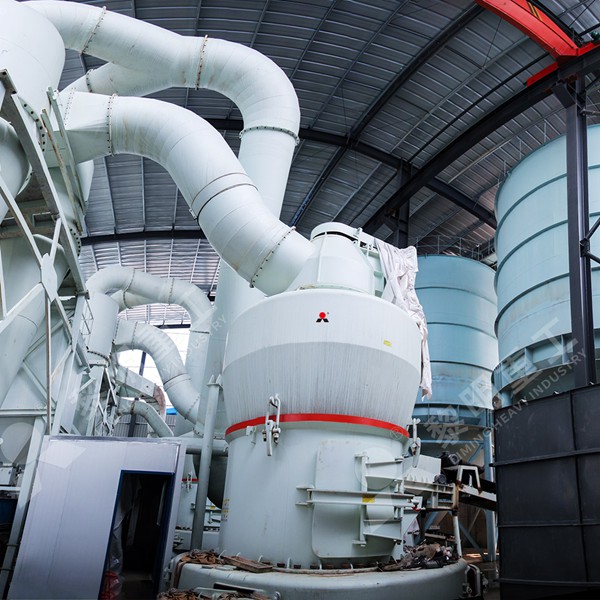

MTW European Type Trapezium Mill
The MTW European Type Trapezium Mill is the upgraded version of the traditional Raymond mill and pendulum mill. It uses patented technology to achieve stable performance, high productivity and significant energy savings. This low energy consumption ore pulverizer is designed for large-scale non-metallic mineral powder making, with a capacity of 3-55 TPH and an input size of 30-50mm. The working principle is fully integrated: a jaw crusher reduces large lumps, a variable-frequency belt feeder supplies material evenly, and the mill grinds between rings and rollers. Particles that pass the separator are collected as finished product, while larger particles fall back for another pass. The whole system is closed-loop and equipped with pulse dust collection, making it an excellent choice for limestone desulfurization in power plants, heavy calcium carbonate processing, solid fuel grinding and building materials.
MW Micro Powder Mill
For ultra-fine powder applications, the MW Micro Powder Mill is a low energy consumption ore pulverizer that uses advanced grinding technology for superfine processing. It can produce finished products up to d97 ≤ 5μm, and fineness is adjustable between 325 mesh and 3250 mesh. This gives operators precise control over product quality while keeping energy use low. The mill has a capacity of 0.5-25 T/H and an input size of 10-20mm. The main shaft is driven by a motor and reducer, and dozens of rollers rotate against a raceway ring to crush material. The pulse precipitator makes the production process greener and more environmentally friendly. It is well suited for calcium carbonate, gypsum, desulfurization and non-metallic ore pulverizing.

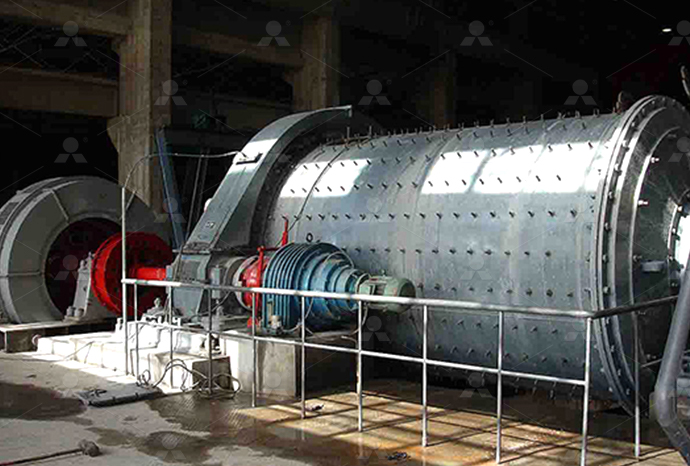

Ball Mill
The Ball Mill remains a key low energy consumption ore pulverizer for many industries. It is the most common grinding plant in beneficiation, construction and chemical applications because it can grind all kinds of ores and other materials. The horizontal rotating device uses an outer gear to turn a barrel filled with steel balls. The centrifugal force lifts the balls to a certain height, and they impact and grind the material as they fall. With a capacity of 0.65-50 T/H and an input size of ≤25mm, the Ball Mill is especially suitable for cement, coal, power plant desulfurization, metallurgy, ceramics and non-metallic minerals. It is a durable, simple and efficient option for operations that require reliable grinding with moderate energy consumption.
System Integration for Maximum Energy Savings
A low energy consumption ore pulverizer works best when it is part of a complete grinding system. In Liming Heavy Industry designs, the system includes the grinding mill, separator, air blower, jaw crusher, vibrating feeder, hopper, dust collector, pipe, powder collector and electric cabinet. Each component is selected to match the mill’s capacity and the material’s properties. For example, the MTW grinding line uses a variable-frequency belt feeder to adjust the feed rate continuously. This avoids sudden loads that spike energy consumption and cause mechanical stress. The closed air system recirculates air through the blower, which reduces the need for additional air-handling equipment. The pulse dust collector captures fine particles and ensures that the process meets environmental protection standards. By looking at the whole circuit rather than just the mill, operators can reduce total energy consumption by a significant margin.
How to Select the Right Low Energy Consumption Ore Pulverizer
Choosing the right low energy consumption ore pulverizer depends on several factors. First, know the feed size. Large lumps require a crusher plus a mill with a larger input size, such as the LM Vertical Roller Mill or the MTW European Type Trapezium Mill. Second, define the target fineness. If you need ultra-fine powder below 325 mesh, the MW Micro Powder Mill is the best option. If you need medium fineness for cement or coal, the Ball Mill and Raymond Mill are well proven. Third, consider capacity. For high-tonnage operations, the LM vertical mill with up to 400 T/H is unmatched. For smaller, specialized batches, the Raymond Mill or MW Micro Powder Mill offers more flexibility. Fourth, evaluate the material’s hardness and moisture. Materials below 7 Mohs hardness and less than 6 percent humidity are suitable for Raymond Mill and similar equipment. Finally, think about environmental compliance. The pulse dust collectors and closed-loop air systems on Liming mills make it easier to meet strict emission limits without sacrificing energy efficiency.
Conclusion
The shift toward low energy consumption ore pulverizers is not just about saving electricity. It is about building a more sustainable, cost-effective and reliable mineral processing operation. Liming Heavy Industry has spent more than 30 years refining grinding technology, and the current product line reflects that experience. From the large-capacity LM Vertical Roller Mill to the ultra-fine MW Micro Powder Mill, each machine is designed with energy efficiency, environmental protection and operational stability in mind. With production bases covering more than 80,000 square meters in the HI-TECH Industry Development Zone of Zhengzhou and another 67,000 square meters in Shangjie Industry Park, the company has the manufacturing capacity and engineering knowledge to support customers worldwide. For any operation looking to reduce energy costs, improve product fineness and make the grinding process cleaner, a modern low energy consumption ore pulverizer from Liming Heavy Industry is a strong investment.
Frequently Asked Questions
1. What makes an ore pulverizer low energy consumption?
A low energy consumption ore pulverizer uses integrated grinding, classification and conveying to avoid over-grinding and reduce auxiliary power. Features such as closed-loop airflow, variable-frequency feeding and efficient dust collection also lower the total energy required per ton of finished powder.
2. Can the same pulverizer handle different types of ores?
Yes. Most Liming pulverizers can process a wide range of non-metallic minerals, coal, slag, cement and chemical materials. The actual performance depends on feed size, hardness, moisture and target fineness. For different materials, operators can adjust the separator speed, air flow and grinding pressure.
3. How does the closed air circulation system reduce energy waste?
In a closed air system, air passes through the separator and returns to the blower for reuse. This reduces the need for additional air-moving equipment and keeps the grinding zone stable. It also prevents unnecessary heat loss and lowers the load on the dust collector, which saves energy.
4. What feed size and capacity ranges can I expect?
Feed size ranges are generally 10-55mm depending on the model. Capacity ranges from 0.5 T/H on the MW Micro Powder Mill up to 400 T/H on the LM Vertical Roller Mill. The Raymond Mill offers 1.2-4.5 T/H, the MTW mill offers 3-55 TPH, and the Ball Mill offers 0.65-50 T/H.
5. Are low energy consumption ore pulverizers environmentally friendly?
Yes. Liming mills are equipped with pulse dust collectors and designed with closed-loop systems that comply with national environmental protection standards. They reduce dust emission, lower energy consumption and help plants meet strict environmental regulations while maintaining high production efficiency.
